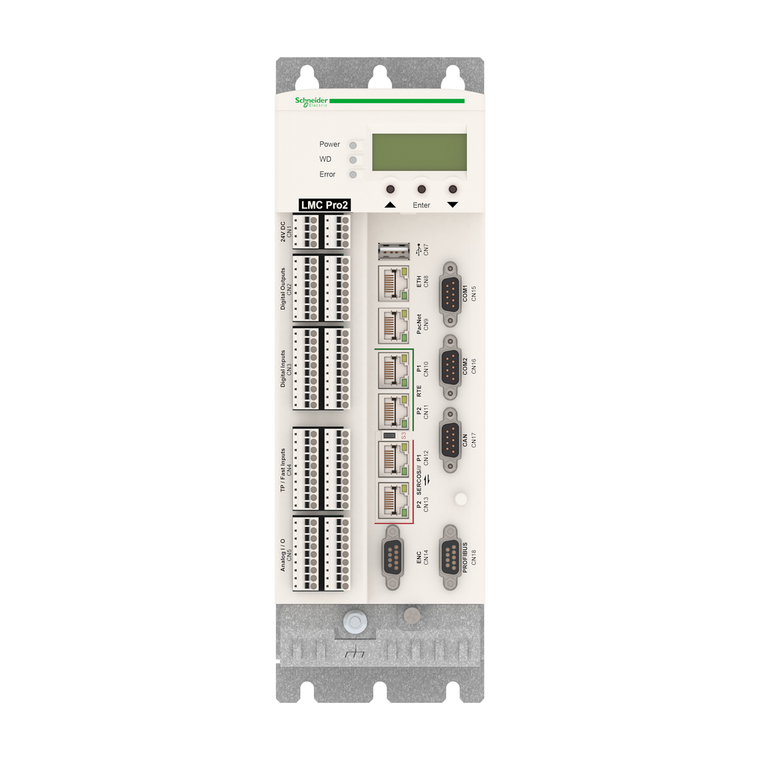

Schneider Electric LMC402CAA10000 Lmc402 16 Axes, Acc. Kit, Basic

(No reviews yet) Write a Review

Write a Review

Schneider Electric LMC402CAA10000 Lmc402 16 Axes, Acc. Kit, Basic

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LMC402CAA10000

UPC:

3606485458304

MPN:

Condition:

New

Discrete Input Voltage Type:

DC

Analogue Input Type:

voltage analog input - 10...10 V || current analog input - 20...20 mA

Shock Resistance:

150 m/s² 6 ms operation)EN/IEC 60721-3-3

Relative Humidity:

5-95 % without condensation

Rohs Exemption Information:

Yes

Vibration Resistance:

3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz

Maximum Leakage Current:

0.4 mA

Range Of Product:

PacDrive 3

Supply:

power supply 24 VDC, <1 A

Memory Type:

256 kB NVRAM || 1 GB RAM DDR3L

Pvc Free:

Yes

Analogue Input Resolution:

12 bits

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

EN/IEC 61131-2 || CSA C22.2 No 274 || UL 508C || CSA C22.2 No 14

Anti Bounce Filtering:

1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input

Depth:

243 mm

Pollution Degree:

2 IEC 61131-2

Power Consumption In W:

36 W

Discrete Output Current:

250 mA digital output

Height:

310 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP1411004EN

Discrete Input Voltage:

0...6 V || 20...33 V

Discrete Output Number:

16 digital output || 2 analog output

Width:

100 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Analogue Input Number:

2

Product Compatibility:

LMC402

Maximum Number Of I/O Expansion Module:

2

Discrete Input Current:

5 mA digital input || 5 mA interrupt input || 5 mA touch probe input

Product Or Component Type:

motion controller

Ambient Air Temperature For Operation:

5-55 °C

Product Certifications:

cULus || CE || EAC || CSA

China Rohs Regulation:

X

Mercury Free:

Yes

Net Weight:

3.5 kg

Ip Degree Of Protection:

IP20EN/IEC 60529

Input Impedance:

100000 Ohm analog input || 500 Ohm

[Us] Rated Supply Voltage:

24 V DC

Integrated Connection Type:

2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link

Discrete Input Number:

20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1

Number Of Axis:

16

Circularity Profile:

ENVEOLI1411004EN

Programming Language:

FBD (function block diagram) || CFC (continuous function chart) || SFC (sequential function chart) || ST (structured text) || IL (instruction list) || LD (ladder)
