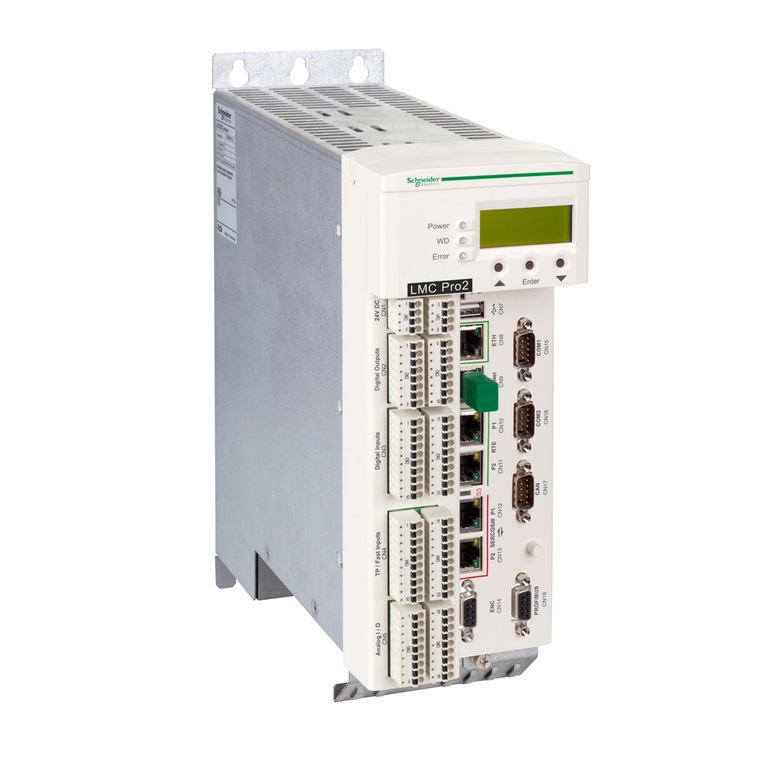

Schneider Electric LMC902CBG10000 Cpu (130 Axis), 2Xom-Ne

SKU:

LMC902CBG10000

UPC:

3.60648E+12

MPN:

Condition:

New

Product Or Component Type:

motion controller

Memory Type:

256 kB NVRAM || 1 GB RAM DDR3L

Discrete Input Voltage Type:

DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

CE || cULus || EAC || CSA

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Analogue Input Resolution:

12 bits

Height:

310 mm

Number Of Axis:

130

Integrated Connection Type:

2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link

Pollution Degree:

2 IEC 61131-2

Anti Bounce Filtering:

1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input

Depth:

243 mm

Maximum Leakage Current:

0.4 mA

Relative Humidity:

5-95 % without condensation

Ip Degree Of Protection:

IP20EN/IEC 60529

Programming Language:

IL (instruction list) || LD (ladder) || FBD (function block diagram) || SFC (sequential function chart) || CFC (continuous function chart) || ST (structured text)

Ambient Air Temperature For Operation:

5-55 °C

Discrete Output Current:

250 mA digital output

Circularity Profile:

ENVEOLI1411004EN

Shock Resistance:

150 m/s² 6 ms operation)EN/IEC 60721-3-3

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Supply:

power supply 24 VDC, <1 A

Input Impedance:

100000 Ohm analog input || 500 Ohm

Net Weight:

3.5 kg

Mercury Free:

Yes

Product Compatibility:

motion controller

Analogue Input Number:

2

[Us] Rated Supply Voltage:

24 V DC

Range Of Product:

PacDrive 3

Discrete Input Voltage:

20...33 V || 0...6 V

Maximum Number Of I/O Expansion Module:

2

Standards:

EN/IEC 61131-2 || UL 508C || CSA C22.2 No 14 || CSA C22.2 No 274

Discrete Input Number:

20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1

Width:

100 mm

Discrete Input Current:

5 mA digital input || 5 mA interrupt input || 5 mA touch probe input

Environmental Disclosure:

ENVPEP1411004EN

Discrete Output Number:

16 digital output || 2 analog output

Power Consumption In W:

36 W

Vibration Resistance:

3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz

Rohs Exemption Information:

Yes

Analogue Input Type:

voltage analog input - 10...10 V || current analog input - 20...20 mA
