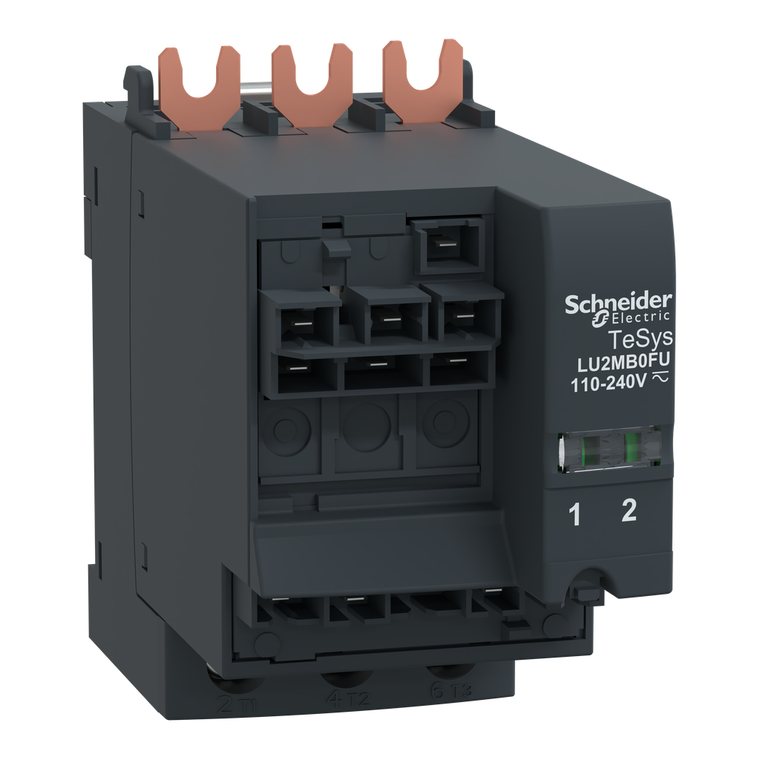

Schneider Electric LU2MB0FU Reverser Block 32A 110-240V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LU2MB0FU Reverser Block 32A 110-240V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LU2MB0FU

UPC:

3.38911E+12

MPN:

Condition:

New

Shock Resistance:

10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27

Standards:

EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier

Depth:

105 mm

Fire Resistance:

960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12

Connections - Terminals:

control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid || cont

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Fixing Mode:

plug-in

Ambient Air Temperature For Operation:

-25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD

Vibration Resistance:

2 gn 5-300 Hz) power poles open IEC 60068-2-27 || 4 gn 5-300 Hz) power poles closed IEC 60068-2-27

Eu Rohs Directive:

Compliant with Exemptions

Ambient Air Temperature For Storage:

-40-85 °C

Net Weight:

0.4 kg

Resistance To Fast Transients:

2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4

Warranty:

18 months

Current Consumption:

1000 mA 110...220 V DC I maximum while closing || 1000 mA 110...240 V AC I maximum while closing

Device Application:

motor control

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Protective Treatment:

TH IEC 60068

Height:

80 mm

Non-Dissipating Shock Wave:

1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2

[Ue] Rated Operational Voltage:

690 V AC power circuit

Tightening Torque:

control circuit 0.8-1.2 N.m flat 5 mm || control circuit 0.8-1.2 N.m Philips No 2 5 mm || power circuit 1.9-2.5 N.m flat 6 mm || power circuit 1.9-2.5 N.m Philips No 2 6 mm

Width:

45 mm

Network Frequency:

40...60 Hz

Product Certifications:

CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine

Immunity To Radioelectric Fields:

10 V IEC 61000-4-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ui] Rated Insulation Voltage:

690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1

Device Short Name:

LU2MB

Compatibility Code:

LU2MB

[Uimp] Rated Impulse Withstand Voltage:

6 kVIEC 60947-6-2

California Proposition 65:

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Operating Altitude:

6561.68 ft (2000 m)

[Uc] Control Circuit Voltage:

110...240 V AC 50/60 Hz || 110...220 V DC

Product Or Component Type:

reverser block

Resistance To Electrostatic Discharge:

8 kV level 3, in open air IEC 61000-4-2 || 8 kV level 4, on contact IEC 61000-4-2

Ip Degree Of Protection:

IP20 IEC 60947-1 front panel and wired terminals) || IP20 IEC 60947-1 other faces) || IP40 IEC 60947-1 front panel outside connection zone)

Device Mounting:

direct mounting

Range:

TeSys

Rohs Exemption Information:

Yes

Operating Time:

150 ms with change of direction || 75 ms without change of direction

[Ie] Rated Operational Current:

38 A

Resistance To Radiated Fields:

10 V/m level 3 IEC 61000-4-3

Inrush Restraint Duration:

25 ms AC || 15 ms DC
