Schneider Electric

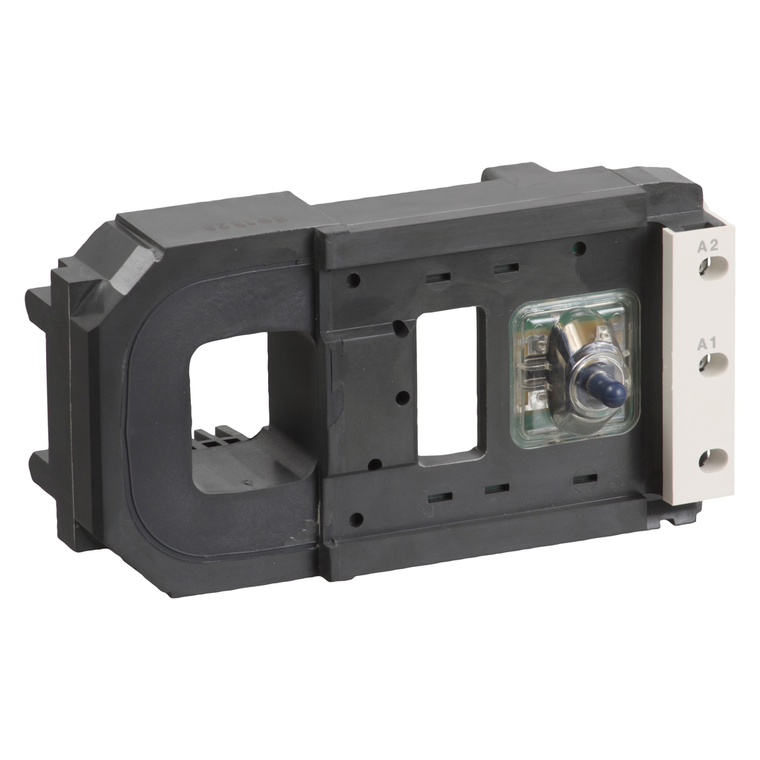

Schneider Electric LX1FK200 TeSys F - contactor coil - LX1FK - 200.208 V AC 40...400 Hz

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LX1FK200 TeSys F - contactor coil - LX1FK - 200.208 V AC 40...400 Hz

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LX1FK200

UPC:

MPN:

LX1FK200

Condition:

New

China Rohs Regulation:

X

Reach Free Of Svhc:

Yes

Warranty:

18 months

Maximum Operating Rate:

2400 cyc/h 55°C

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1505009EN

Sustainable Offer Status:

Green Premium product

Average Resistance:

29 Ohm inrush 20°C || 735 Ohm holding 20°C

Coil Technology:

without built-in suppressor module

[Uc] Control Circuit Voltage:

200...208 V AC 40...400 Hz

Heat Dissipation:

18-18 W 40...400 Hz

Inrush Power In Va:

1100-1100 VA 40...400 Hz cos phi 0.9 (at 20°C)

Range Compatibility:

TeSys TeSys F LC1F contactor

Toxic Heavy Metal Free:

Yes

Range:

TeSys

Product Or Component Type:

contactor coil

Circularity Profile:

ENVEOLI1505009EN

Operating Time:

100...170 ms opening || 40...75 ms closing

Country of Origin:

France

Ambient Air Temperature For Operation:

-5-55°C

Mechanical Durability:

10 Mcycles

Hold-In Power Consumption In Va:

18-18 VA 40...400 Hz cos phi 0.3 (at 20°C)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Compatibility:

LC1F500

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Inductance Of Closed Circuit:

3.75 H

Weight:

1.15 kg

Control Circuit Type:

AC 40...400 Hz

Rohs Exemption Information:

Yes

Net Weight:

1.15 kg

Device Short Name:

LX1FK

Control Circuit Voltage Limits:

operational 0.85...1.1 Uc 40...400 Hz 55°C) || drop-out 0.3...0.5 Uc 40...400 Hz 55°C)
