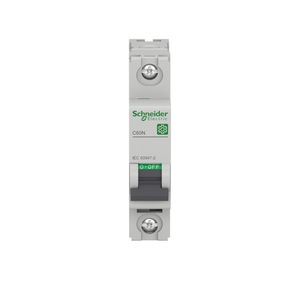

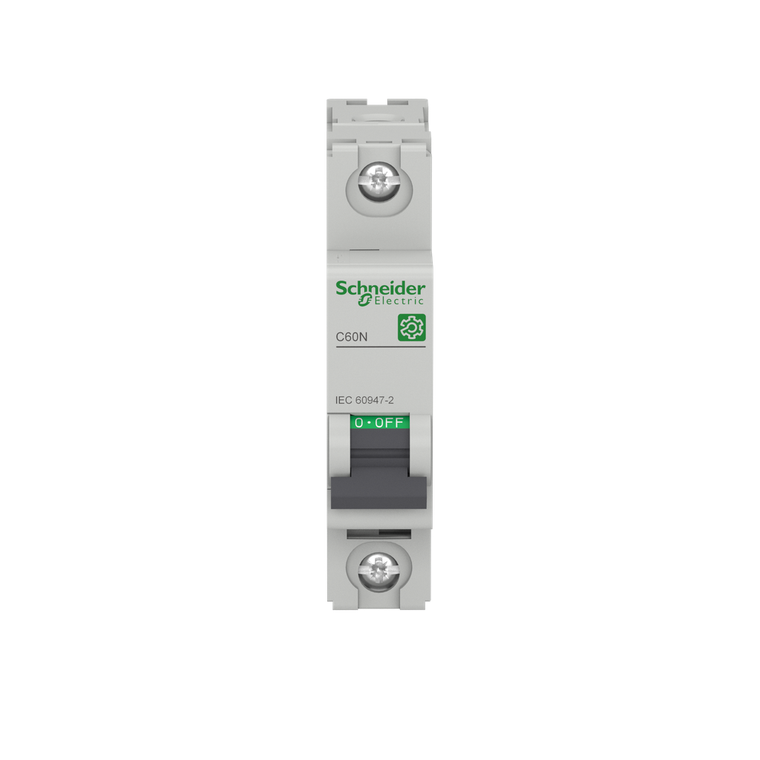

Schneider Electric M9F12104 Multi9 C60N 1P D 4A 10Ka 240V Mcb
Schneider Electric
$96.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 4A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Device Application:
- distribution
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Durability:
- 10000 cycles
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Network Type:
- DC || AC
- Sustainable Offer Status:
- Green Premium product
- Relative Humidity:
- 95-95 % 55-55 °C
- Ambient Air Temperature For Storage:
- -40-80 °C
- Local Signalling:
- ON/OFF indication
- Limitation Class:
- 3
- Network Frequency:
- 50/60 Hz
- Width:
- 18 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Standards:
- EN/IEC 60947-2
- Breaking Capacity:
- 15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Environmental Disclosure:
- ENVPEP1304004EN
- Tightening Torque:
- 2-2 N.m top or bottom
- Pollution Degree:
- 3 EN/IEC 60947-2
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Curve Code:
- D
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Product Name:
- Multi9 C60
- Net Weight:
- 0.12 kg
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
- Heat Dissipation:
- 2.4-2.4 W 240 V - 4 A
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Provision For Padlocking:
- padlockable
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Number Of Protected Poles:
- 1
- Mechanical Durability:
- 20000 cycles
- Ambient Air Temperature For Operation:
- -30-70 °C
- Contact Position Indicator:
- yes
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Trip Unit Technology:
- thermal-magnetic
- Range:
- Multi9
- Utilisation Category:
- category A EN/IEC 60947-2
- Overvoltage Category:
- IV
- Mounting Mode:
- clip-on
- Control Type:
- toggle
- Height:
- 81 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Earth-Leakage Protection:
- separate block
- Device Short Name:
- C60N
- Magnetic Tripping Limit:
- 12 x In +/- 20 % AC || 17 x In +/- 20 % DC
- Halogen Content Performance:
- Halogen free product
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Poles Description:
- 1P
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Mounting Support:
- DIN rail
- 9 Mm Pitches:
- 2
- Line Rated Current:
- 4 A 50 °C EN/IEC 60947-2
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Depth:
- 72 mm
- Product Certifications:
- EAC || KC || CCC
- Tropicalisation:
- 2 IEC 60068-1
- Color:
- Gray
