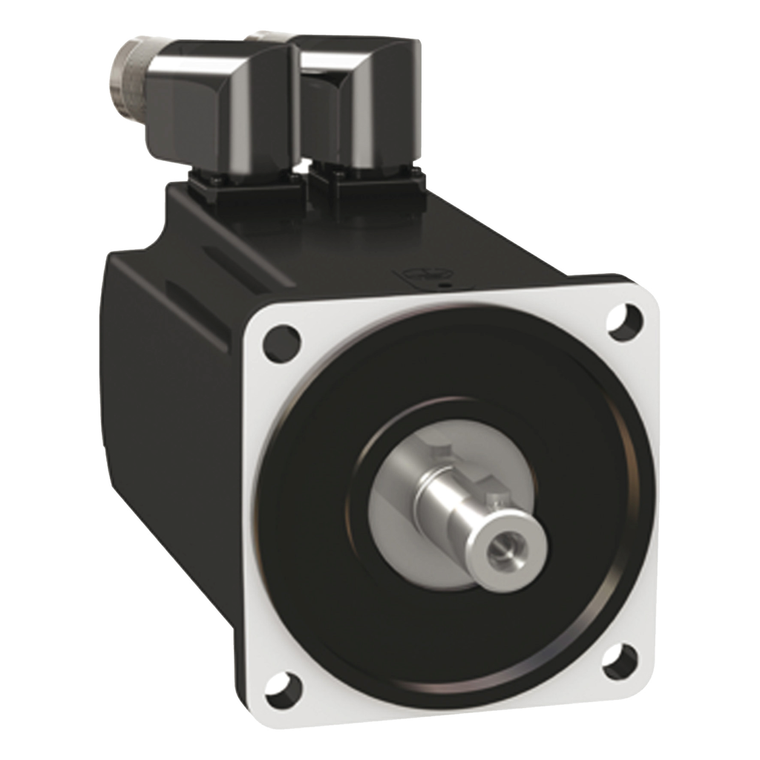

Schneider Electric MH31001P17A2200 servo motor MH3 100 3,3Nm,key,multi 16 lines,no brake,IP65/IP67,4kRPM

Schneider Electric MH31001P17A2200 servo motor MH3 100 3,3Nm,key,multi 16 lines,no brake,IP65/IP67,4kRPM

Schneider Electric
SKU:
MH31001P17A2200
$1,140.41
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
servo motor MH3 100 3,3Nm,key,multi 16 lines,no brake,IP65/IP67,4kRPM
Additional Information
Centring Collar Depth:
3.5 mm
Range Compatibility:
PacDrive 3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nominal Torque:
3.3 N.m LXM52 3.07 mA, 115 V, 1 phase || 3.2 N.m LXM52 2.99 mA, 230 V, 1 phase || 3 N.m LXM52 2.83 mA, 400 V, 3 phase || 2.9 N.m LXM52 2.75 mA, 480 V, 3 phase || 3.3 N.m LXM62 3.07 mA, 115 V, 1 phase || 3.2 N.m LXM62 2.99 mA, 230 V, 1 phase || 3 N.m
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circle Diameter Of The Mounting Holes:
115 mm
Second Shaft:
without second shaft end
[Us] Rated Supply Voltage:
115...480 V
Shaft Diameter:
19 mm
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
Peak Stall Torque:
10.8 N.m, 115...480 V, three phase
Device Short Name:
MH3
Rotor Inertia:
3.19 kg.cm²
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Support:
international standard flange
Ip Degree Of Protection:
IP65 standard
Nominal Speed:
1000 rpm LXM52 3.07 mA, 115 V, 1 phase || 2000 rpm LXM52 2.99 mA, 230 V, 1 phase || 4000 rpm LXM52 2.83 mA, 400 V, 3 phase || 5000 rpm LXM52 2.75 mA, 480 V, 3 phase || 1000 rpm LXM62 3.07 mA, 115 V, 1 phase || 2000 rpm LXM62 2.99 mA, 230 V, 1 phase |
Stator Resistance:
4.12 Ohm
Shaft End:
parallel key
Product Or Component Type:
AC servo motors
Width:
6 mm
Motor Flange Size:
100 mm
Shaft Length:
40 mm
Mercury Free:
Yes
Key Width:
6 mm
Continuous Power:
1520 W
Electrical Connection:
rotatable right-angled connectors
Phase:
three phase
Stator Inductance:
14.9 mH
Mounting Holes Diameter:
9 mm
Back Emf Constant:
70.3 V/krpm
Encoder Type:
multiturn SinCos Hiperface
Continuous Stall Torque:
3.4 N.m, 115...480 V, three phase
Environmental Disclosure:
ENVPEP111002EN
Sustainable Offer Status:
Green Premium product
Number Of Motor Poles:
10
Maximum Mechanical Speed:
6000 rpm
Circularity Profile:
N/A
Stator Electrical Time Constant:
4.5 ms
Rohs Exemption Information:
Yes
Maximum Current Irms:
10.68 A
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Speed Feedback Resolution:
16 periods
Torque Constant:
1.09 N.m/A 120°C
Number Of Mounting Holes:
4
Weight:
3.34 kg
Holding Brake:
without
