Schneider Electric NSYBANPLA74 Horizontal Plate F Plax74
Schneider Electric
$183.27
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

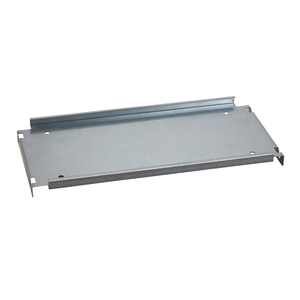

Horizontal support plate for PLA enclosure W750xD420mm
- Height:
- 18 mm
- Range Compatibility:
- Thalassa Thalassa PLA
- Device Application:
- multi-purpose
- Adjustment:
- adjustable in height every 50 mm uprights
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Material:
- galvanised steel
- Width:
- 708 mm
- Mounting Support:
- vertical uprights, for installation of one or several support plates
- Product Or Component Type:
- support
- Toxic Heavy Metal Free:
- Yes
- Accessory / Separate Part Category:
- installation accessory
- Mercury Free:
- Yes
- Device Composition:
- fixing elements || 1 plate
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Range:
- Thalassa
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP110921EN
- Warranty:
- 18 months
- Maximum Load:
- 50 kg
- Depth:
- 340 mm
- Catalog:
- View
- Datasheet:
- View
