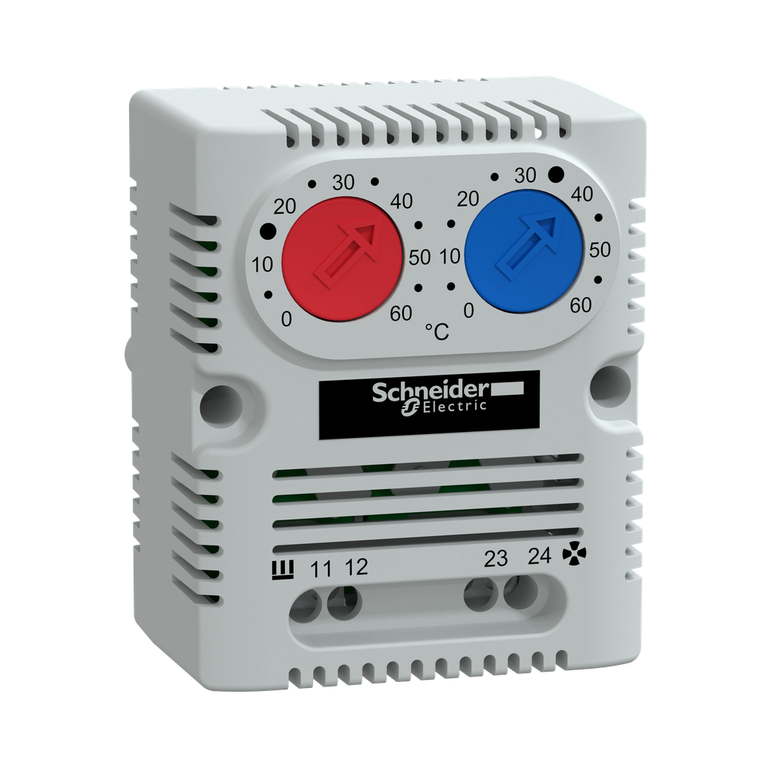

Schneider Electric NSYCCOTHD Double Thermostatno Nc Deg Celsius
Schneider Electric
$45.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCCOTHD Double Thermostatno Nc Deg Celsius
ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Contacts Type And Composition:
- 1 NO/NC
- Mounting Location:
- Spacial upright || on mounting plate || 35 mm DIN rail || cross rails
- Product Name:
- ClimaSys CC
- Material:
- PC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Service Life In Cycles:
- 100000 cycles
- Environmental Disclosure:
- ENVPEP2103012EN
- Sensor Type:
- bimetal
- Color:
- Light gray
- Number Of Outputs:
- 1 heating function || 1 ventilation function
- Mounting Mode:
- clipped
- Sustainable Offer Status:
- Green Premium product
- Information Displayed:
- temperature in °C
- Flame Retardance:
- self-extinguishing conforming to UL94 (material V0)
- Electrical Connection:
- 4 terminals 2.5 mm²
- Input Voltage:
- 250 V
- Net Weight:
- 40 g
- Temperature Setting Range:
- 0-60 °C
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -20-80 °C
- Product Certifications:
- UL
- Width:
- external 56 mm
- Height:
- external 68 mm
- Ip Degree Of Protection:
- IP20
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Or Component Type:
- double thermostat
- Rohs Exemption Information:
- Yes
- Contact Resistance:
- 10 mOhm
- Depth:
- external 44 mm
- Warranty:
- 18 months
- Range:
- ClimaSys
- Maximum Switching Capacity:
- 2 A 120...250 V AC inductive 0.6 || 10 A 250 V AC resistive || 15 A 120 V AC resistive || 30 W DC
- Hysteresis:
- 7 K +/- 0.4K
- Circularity Profile:
- N/A
