Schneider Electric

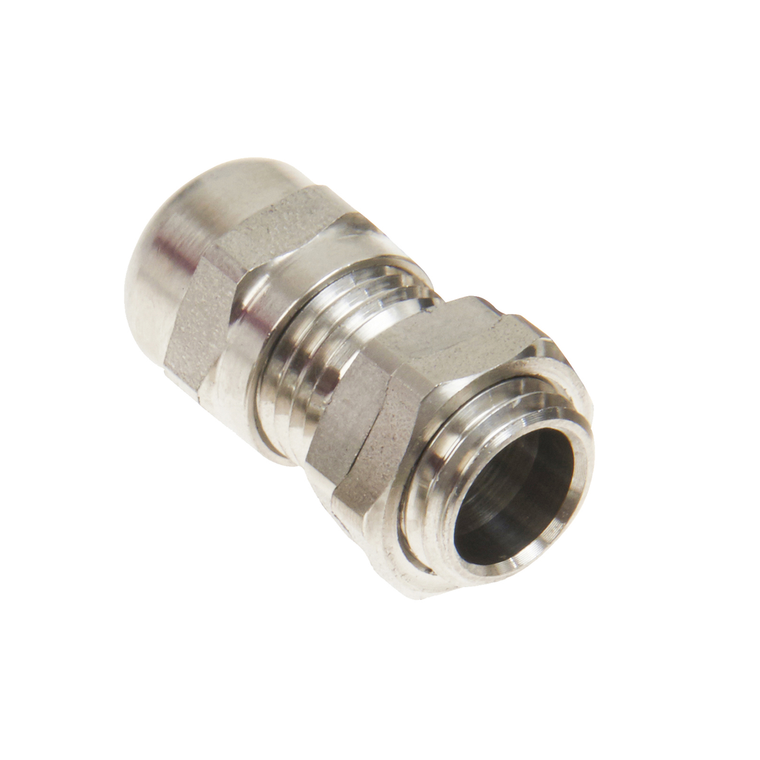

Schneider Electric NSYCGX20H Cable Gland S.Steel 316L+Nut M20

SKU:

NSYCGX20H

UPC:

3606481360298

MPN:

Condition:

New

Color:

Gray

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Accessory / Separate Part Category:

cable management accessory

Height:

36 mm

Reach Free Of Svhc:

Yes

Net Weight:

0.034 kg

Quantity Per Set:

set of 4

Fixing Mode:

screwed || by nut

Material:

seal CR (chloroprene) || body stainless steel AISI 316L

Product Or Component Type:

cable gland

Ip Degree Of Protection:

IP68 IEC 60529 5 bar, 30 min

Product Certifications:

VDE

Range:

Spacial

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Operation:

-20-100 °C permanent || -40-150 °C intermittent

Flame Retardance:

V2 conforming to UL 94

Device Composition:

1 cable gland || 1 lock nut || 1 seal

Range Compatibility:

Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X

Toxic Heavy Metal Free:

Yes

Mounting Location:

enclosure bottom || enclosure top

Cable Entry:

cable gland M20

Mercury Free:

Yes

Catalog:

View

Datasheet:

View
