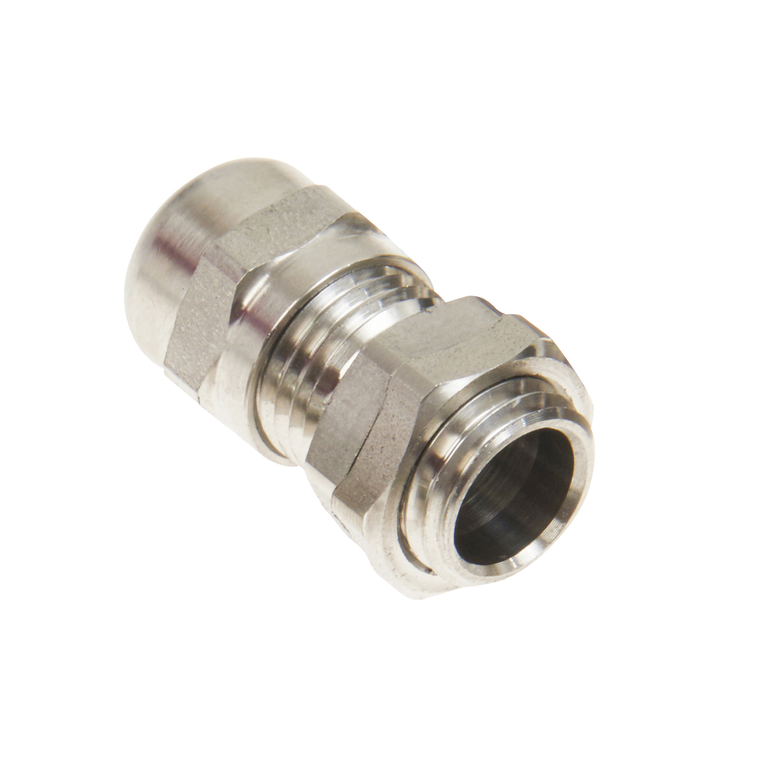

Schneider Electric NSYCGX32H Cable Gland S.Steel 316L+Nut M32

(No reviews yet) Write a Review
SKU:
NSYCGX32H
UPC:
3.60648E+12
Condition:
New
Ambient Air Temperature For Operation:
-20-100 °C permanent || -40-150 °C intermittent
Device Composition:
1 cable gland || 1 lock nut || 1 seal
Color:
Gray
Ip Degree Of Protection:
IP68 IEC 60529 5 bar, 30 min
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
0.077 kg
Height:
41.5 mm
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Cable Entry:
cable gland M32
Fixing Mode:
screwed || by nut
Range:
Spacial
Range Compatibility:
Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X
Flame Retardance:
V2 conforming to UL 94
Material:
seal CR (chloroprene) || body stainless steel AISI 316L
Reach Free Of Svhc:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free:
Yes
Quantity Per Set:
set of 2
Product Or Component Type:
cable gland
Product Certifications:
VDE
Mounting Location:
enclosure top || enclosure bottom
Accessory / Separate Part Category:
cable management accessory
  • Schneider Electric NSYCGX32H Cable Gland S.Steel 316L+Nut M32
  • Schneider Electric NSYCGX32H Cable Gland S.Steel 316L+Nut M32
$108.00
