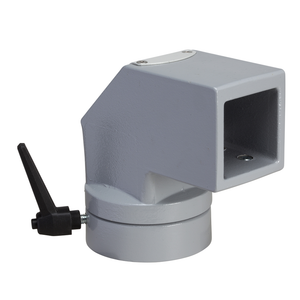

Schneider Electric NSYCMUMC50 Cm Horiz Rotating Bracket 50Mm Sq
Schneider Electric
$1,144.19
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCMUMC50 Cm Horiz Rotating Bracket 50Mm Sq
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Spacial S3CM HMI horizontal rotating bracket, square 50mm. H: 134 x 140 x 164 mm. Fixing on support. Mounting between tube and support, in horizontal position . Operating angle: 295°. Permanent permissible load: 5.4 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.
- Color:
- Gray RAL 7040)
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Surface Finish:
- epoxy-polyester powder
- Depth:
- 164 mm
- Height:
- 134 mm
- Device Application:
- multi-purpose
- Sustainable Offer Status:
- Green Premium product
- Mounting Support:
- option of passing cables through the inside || for 50 mm square tube
- Material:
- moulded steel
- Environmental Disclosure:
- ENVPEP100104EN
- Mounting Location:
- between tube and support
- Mercury Free:
- Yes
- Range:
- Spacial
- Operating Angle:
- 295 °
- Permanent Permissible Load:
- 5.4 kg
- Net Weight:
- 5.56 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Fixing Mode:
- by fixing element M12 - horizontal tube || by 4 screws M9 - on support
- Range Compatibility:
- Spacial Spacial S3CM
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- fixing on support
- Accessory / Separate Part Category:
- mounting accessory
- Width:
- 140 mm
- Quantity Per Set:
- set of 1
- Device Composition:
- fixing elements || 1 fixing and rotating bracket
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Catalog:
- View
- Datasheet:
- View
