Schneider Electric NSYCR100WU1 Resist.Heateralum 100W, 12-24V

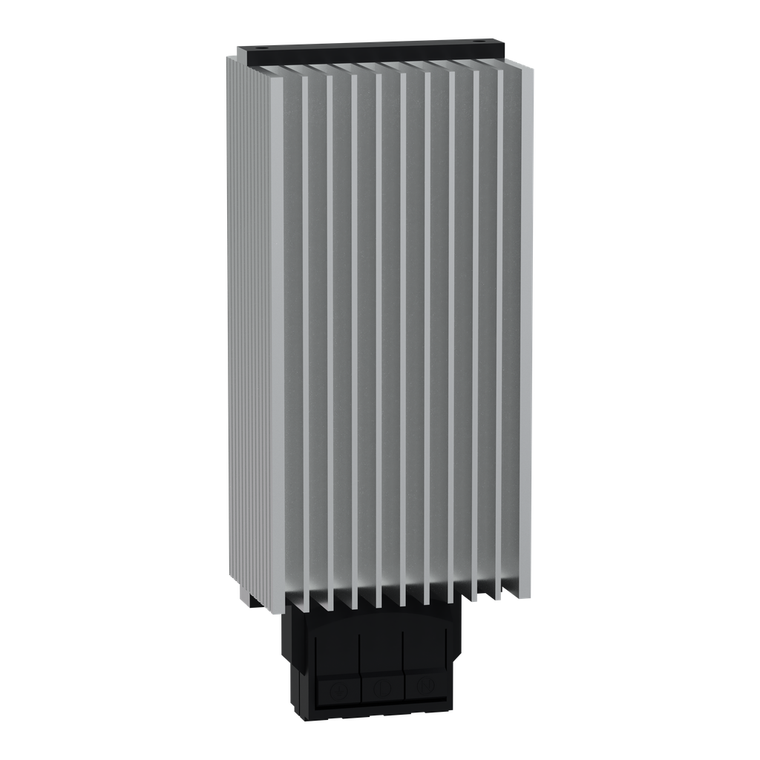

ClimaSys PTC heating resistance. 100W, 12-24V. Vertical operating position. -40-70 °C ambient temp for operation. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
- Material:
- body extruded aluminium
- Mounting Support:
- 35 mm DIN rail
- Range:
- ClimaSys
- Operating Position:
- vertical
- Condition Of Use:
- heaters must be installed with a thermal controller || electrical protection is needed || air sealed enclosure
- Environmental Disclosure:
- ENVPEP2103011EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- VDE || UL
- Ambient Air Temperature For Operation:
- -40-70 °C
- Input Voltage:
- 12...24 V DC
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Power Range:
- 90 W
- Product Name:
- ClimaSys CR
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP20
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- resistance heater
- Eu Rohs Directive:
- Compliant with Exemptions
- Fixing Mode:
- by clips
- Circularity Profile:
- N/A
- Catalog:
- View
- Datasheet:
- View
