Schneider Electric NSYCR10WU1 Resist.Heateralum 10W, 12-24V
Schneider Electric
$22.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

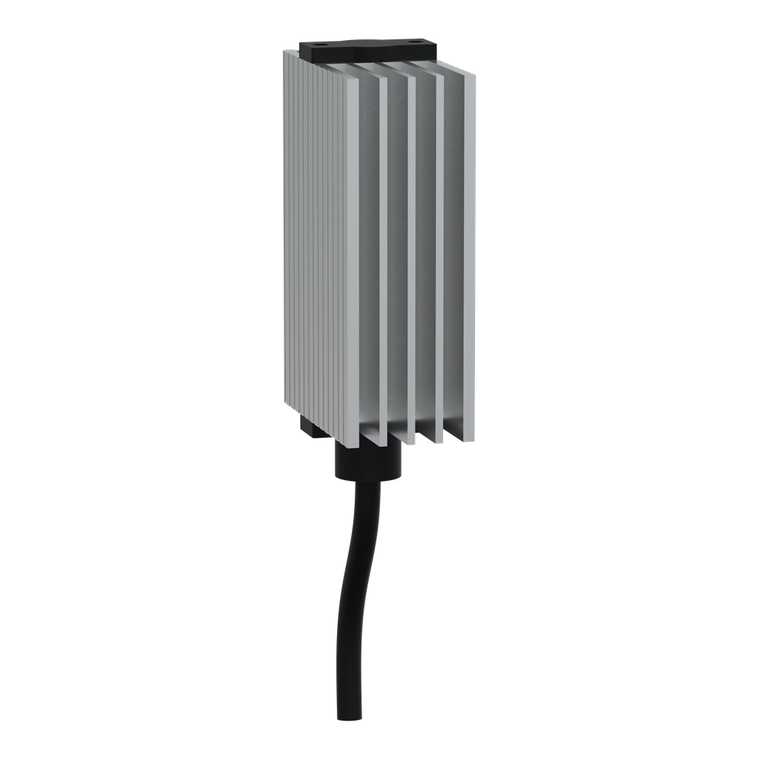

Schneider Electric NSYCR10WU1 Resist.Heateralum 10W, 12-24V
ClimaSys PTC heating resistance. 10W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
- Electrical Connection:
- cable 2 x 0.75 mm² 300 mm
- Height:
- external 85 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL || VDE
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-70 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Sustainable Offer Status:
- Green Premium product
- Power Range:
- 10 W
- Fixing Mode:
- by clips
- Condition Of Use:
- electrical protection is needed || air sealed enclosure || heaters must be installed with a thermal controller
- Product Name:
- ClimaSys CR
- Rohs Exemption Information:
- Yes
- Mounting Support:
- 35 mm DIN rail
- Range:
- ClimaSys
- Environmental Disclosure:
- ENVPEP2103011EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection:
- IP20
- Mercury Free:
- Yes
- Material:
- body extruded aluminium
- Input Voltage:
- 12...24 V DC
- Depth:
- external 57 mm
- Circularity Profile:
- N/A
- Width:
- external 25 mm
- Product Or Component Type:
- resistance heater
- Operating Position:
- vertical
- Catalog:
- View
- Datasheet:
- View
