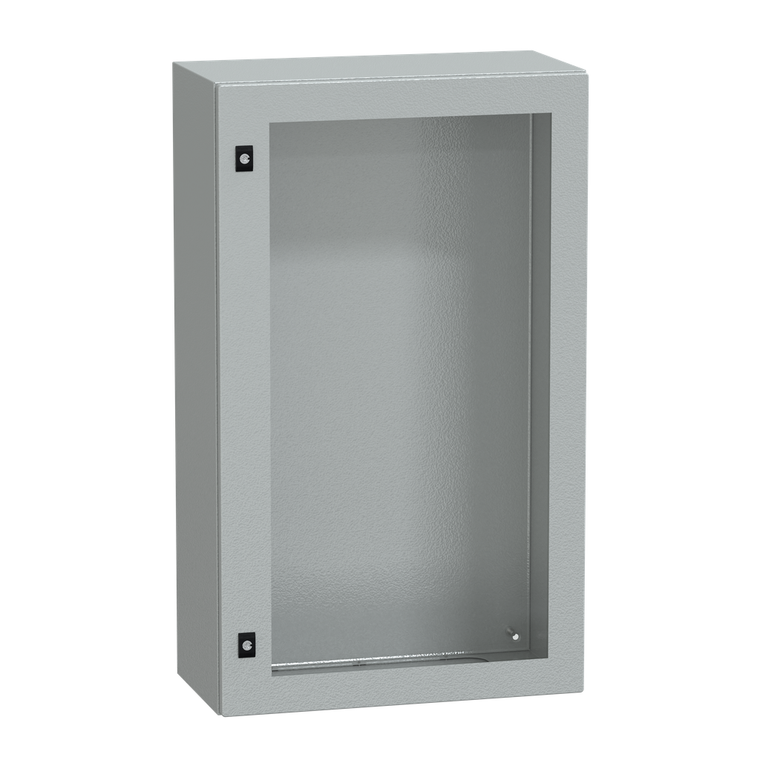

Schneider Electric NSYCRN106300T Crn 1000X600X300 Glazed Door

(No reviews yet) Write a Review
SKU:
NSYCRN106300T
UPC:
3.60648E+12
Condition:
New
Type Of Gland Plate:
standard
Material:
body steel || door steel and security glass
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
cUL || UL || DNV-GL
Range:
Spacial
Product Or Component Type:
compact enclosure
Lock Type:
3 mm double-bar lock
Door Type:
Glass
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP66 IEC 60529
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Enclosure Nominal Depth:
300 mm
Enclosure Nominal Width:
600 mm
Standards:
IEC 62208
Mounting Plate Description:
without mounting plate
Device Application:
multi-purpose
Installation Accessory Type:
wall-mounting
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Warranty:
18 months
Circularity Profile:
N/A
Net Weight:
25 kg
Variant Particularity:
back welded with double profile forming a protected sealed area || sides made from a single folded section
Removable Parts:
door by hinges || cable gland plate by screws
Number Of Doors:
front face 1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Nominal Height:
1000 mm
Accessibility For Operation:
front
Surface Finish:
epoxy-polyester powder
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP100104EN
Product Name:
Spacial CRN
Door Opening Side:
reversible 120 °)
Color:
Gray RAL 7035)
Ik Degree Of Protection:
IK08 IEC 62262
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric NSYCRN106300T Crn 1000X600X300 Glazed Door
  • Schneider Electric NSYCRN106300T Crn 1000X600X300 Glazed Door
$680.82

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 1000 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
