Schneider Electric NSYCRN108250 Crn 1000X800X250 One Plain Door
Schneider Electric
$367.13
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

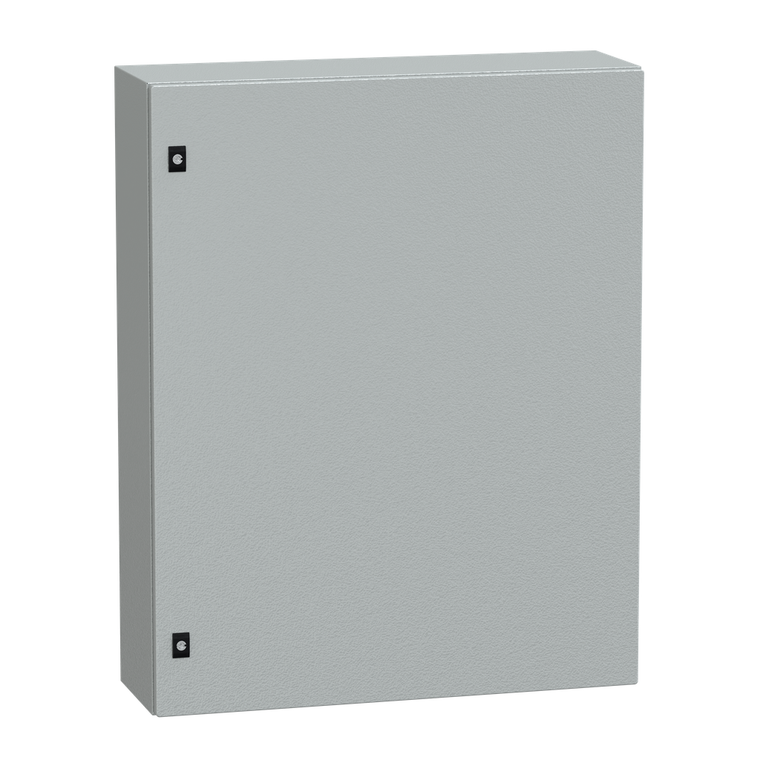

Schneider Electric NSYCRN108250 Crn 1000X800X250 One Plain Door
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Ik Degree Of Protection:
- IK10 IEC 62262
- Door Type:
- Solid
- Color:
- Gray RAL 7035)
- Device Application:
- multi-purpose
- Enclosure Nominal Width:
- 800 mm
- Installation Accessory Type:
- wall-mounting
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Enclosure Nominal Height:
- 1000 mm
- Mounting Plate Description:
- without mounting plate
- Product Or Component Type:
- compact enclosure
- Range:
- Spacial
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL || cUL || DNV-GL
- Standards:
- IEC 62208
- Door Opening Side:
- reversible 120 °)
- Ip Degree Of Protection:
- IP66 IEC 60529
- Sustainable Offer Status:
- Green Premium product
- Variant Particularity:
- back welded with double profile forming a protected sealed area || sides made from a single folded section
- Environmental Disclosure:
- ENVPEP100104EN
- Warranty:
- 18 months
- Type Of Gland Plate:
- standard
- Number Of Doors:
- front face 1
- Mercury Free:
- Yes
- Material:
- body steel
- Circularity Profile:
- N/A
- Lock Type:
- 3 mm double-bar lock
- Enclosure Nominal Depth:
- 250 mm
- Net Weight:
- 33 kg
- Product Name:
- Spacial CRN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Surface Finish:
- epoxy-polyester powder
- Device Composition:
- 1 body || 1 door || 1 lock || 2 cable gland plate bottom
- Accessibility For Operation:
- front
- Removable Parts:
- door by hinges || cable gland plate by screws
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
