Schneider Electric NSYCRN108250P Crn 1000X800X250 One Pl Door W Ch
Schneider Electric
$546.78
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN108250P Crn 1000X800X250 One Pl Door W Ch

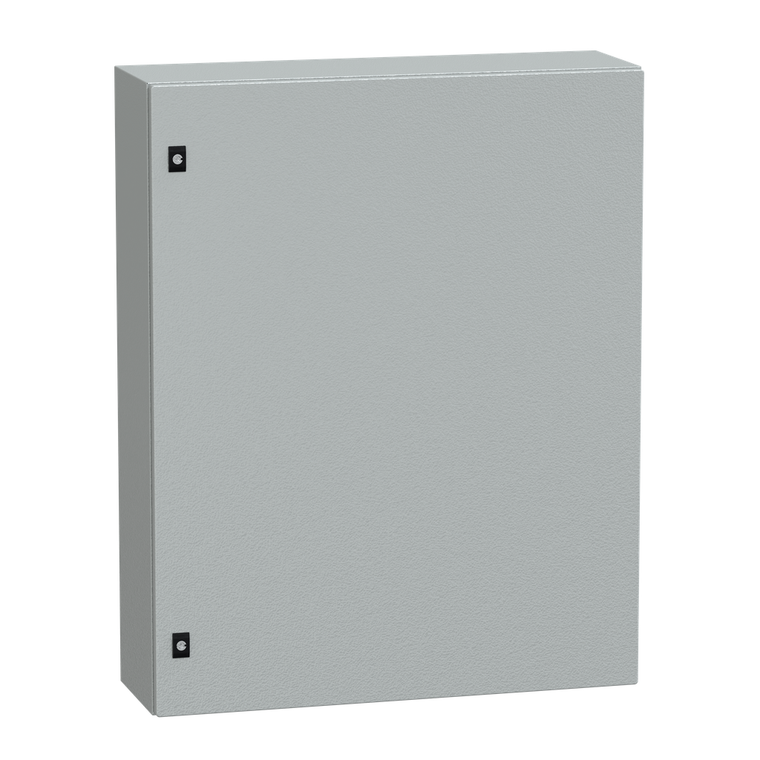

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Product Certifications:
- cUL || UL || DNV-GL
- Enclosure Nominal Width:
- 800 mm
- Device Composition:
- 1 body || 1 door with lock || 1 mounting plate || 2 cable gland plate bottom
- Type Of Gland Plate:
- standard
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP100104EN
- Mercury Free:
- Yes
- Mounting Plate Description:
- plain
- Product Name:
- Spacial CRN
- Net Weight:
- 42 kg
- Product Or Component Type:
- compact enclosure
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Door Type:
- Solid
- Color:
- enclosure Gray RAL 7035)
- Enclosure Nominal Depth:
- 250 mm
- Standards:
- IEC 62208
- Range:
- Spacial
- Accessibility For Operation:
- front
- Surface Finish:
- enclosure epoxy-polyester powder
- Variant Particularity:
- back welded with double profile forming a protected sealed area || sides made from a single folded section
- Device Application:
- multi-purpose
- Installation Accessory Type:
- wall-mounting
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66 IEC 60529
- Lock Type:
- 3 mm double-bar lock
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ik Degree Of Protection:
- IK10 IEC 62262
- Sustainable Offer Status:
- Green Premium product
- Number Of Doors:
- front face 1
- Circularity Profile:
- N/A
- Material:
- enclosure steel || mounting plate galvanised steel
- Enclosure Nominal Height:
- 1000 mm
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Door Opening Side:
- reversible 120 °)
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
