Schneider Electric

Schneider Electric NSYCRN108250T Crn 1000X800X250 Glazed Door

(No reviews yet) Write a Review
SKU:
NSYCRN108250T
UPC:
3606480212697
Condition:
New
Product Certifications:
UL || cUL || DNV-GL
Accessibility For Operation:
front
Door Opening Side:
reversible 120 °)
Ip Degree Of Protection:
IP66 IEC 60529
Installation Accessory Type:
wall-mounting
Device Composition:
1 body || 1 door || 1 lock || 2 cable gland plate bottom
Ik Degree Of Protection:
IK08 IEC 62262
Range:
Spacial
Color:
Gray RAL 7035)
Net Weight:
29.815 kg
Surface Finish:
epoxy-polyester powder
Material:
body steel || door steel and security glass
Standards:
IEC 62208
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP100104EN
Circularity Profile:
N/A
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Mounting Plate Description:
without mounting plate
Variant Particularity:
back welded with double profile forming a protected sealed area || sides made from a single folded section
Mercury Free:
Yes
Product Name:
Spacial CRN
Rohs Exemption Information:
Yes
Type Of Gland Plate:
standard
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Nominal Width:
800 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Removable Parts:
door by hinges || cable gland plate by screws
Enclosure Nominal Depth:
250 mm
Door Type:
Glass
Number Of Doors:
front face 1
Enclosure Nominal Height:
1000 mm
Product Or Component Type:
compact enclosure
Lock Type:
3 mm double-bar lock
Device Application:
multi-purpose
Brochure:
View
Catalog:
View
Datasheet:
View
$611.36

Description

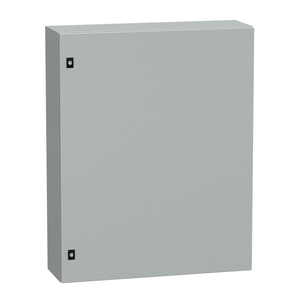

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
