Schneider Electric NSYCRN108300P Crn 1000X800X300 One Pl Door W Ch
Schneider Electric
$546.28
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

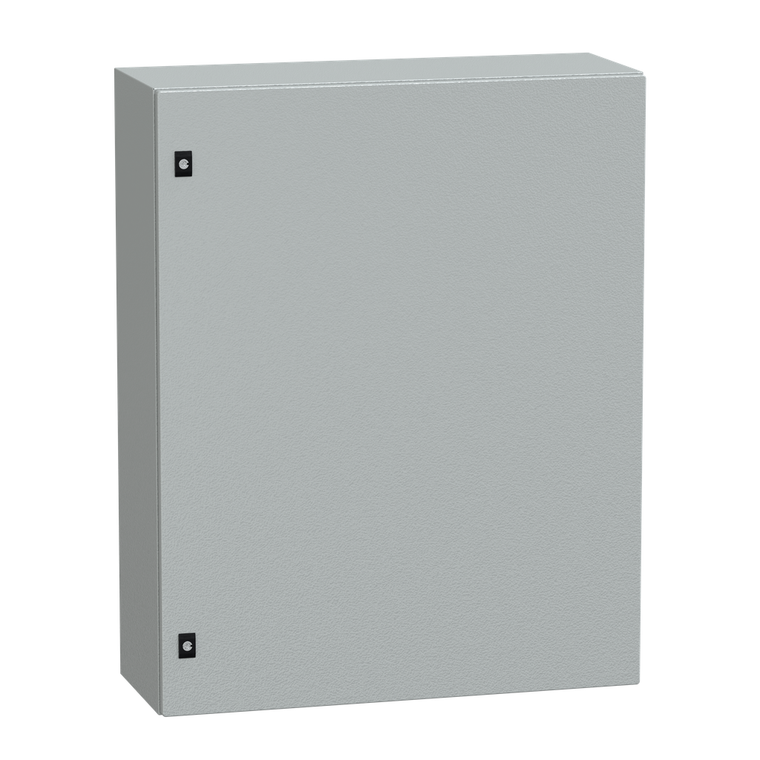

Schneider Electric NSYCRN108300P Crn 1000X800X300 One Pl Door W Ch
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Warranty:
- 18 months
- Color:
- enclosure Gray RAL 7035)
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Door Opening Side:
- reversible 120 °)
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Ik Degree Of Protection:
- IK10 IEC 62262
- Enclosure Nominal Width:
- 800 mm
- Material:
- enclosure steel || mounting plate galvanised steel
- Device Application:
- multi-purpose
- Installation Accessory Type:
- wall-mounting
- Number Of Doors:
- front face 1
- Lock Type:
- 3 mm double-bar lock
- Variant Particularity:
- back welded with double profile forming a protected sealed area || sides made from a single folded section
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Standards:
- IEC 62208
- Accessibility For Operation:
- front
- Product Or Component Type:
- compact enclosure
- Enclosure Nominal Height:
- 1000 mm
- Door Type:
- Solid
- Product Name:
- Spacial CRN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range:
- Spacial
- Surface Finish:
- enclosure epoxy-polyester powder
- Circularity Profile:
- N/A
- Device Composition:
- 1 body || 1 door with lock || 1 mounting plate || 2 cable gland plate bottom
- Environmental Disclosure:
- ENVPEP100104EN
- Net Weight:
- 49 kg
- Enclosure Nominal Depth:
- 300 mm
- Mounting Plate Description:
- plain
- Type Of Gland Plate:
- standard
- Product Certifications:
- UL || cUL || DNV-GL
- Ip Degree Of Protection:
- IP66 IEC 60529
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
