Schneider Electric NSYCRN252150 Nsycrn 250X200X150 One Plain Door
Schneider Electric
$79.24
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN252150 Nsycrn 250X200X150 One Plain Door
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

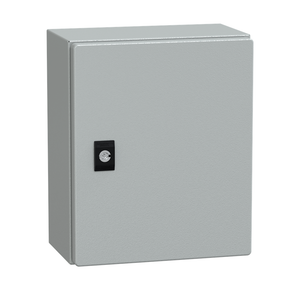

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 200 mm x (H) 250 mm x (D) 150 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Type Of Gland Plate:
- standard
- Enclosure Nominal Depth:
- 150 mm
- Color:
- Gray RAL 7035)
- Door Type:
- Solid
- Number Of Doors:
- front face 1
- Device Application:
- multi-purpose
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP100104EN
- Removable Parts:
- door by hinges || cable gland plate by screws
- Mounting Plate Description:
- without mounting plate
- Standards:
- IEC 62208
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range:
- Spacial
- Door Opening Side:
- reversible 120 °)
- Product Or Component Type:
- compact enclosure
- Net Weight:
- 2.822 kg
- Surface Finish:
- epoxy-polyester powder
- Variant Particularity:
- back welded with double profile forming a protected sealed area || sides made from a single folded section
- Enclosure Nominal Width:
- 200 mm
- Installation Accessory Type:
- wall-mounting
- Product Name:
- Spacial CRN
- Material:
- body steel
- Enclosure Nominal Height:
- 250 mm
- Circularity Profile:
- N/A
- Product Certifications:
- UL || cUL || DNV-GL
- Rohs Exemption Information:
- Yes
- Ik Degree Of Protection:
- IK10 IEC 62262
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Composition:
- 1 body || 1 cable gland plate || 1 door || 1 lock
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Lock Type:
- 3 mm double-bar lock
- Accessibility For Operation:
- front
