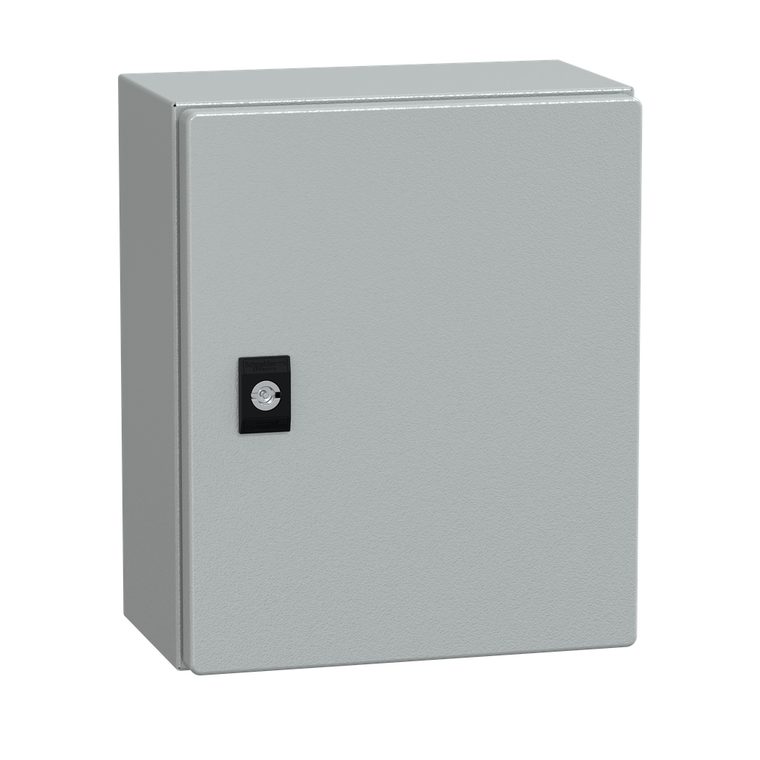

Schneider Electric NSYCRN325150 Nsycrn 300X250X150 One Plain Door

(No reviews yet) Write a Review
SKU:
NSYCRN325150
UPC:
3606480212611
Condition:
New
Accessibility For Operation:
front
Enclosure Nominal Height:
300 mm
Mercury Free:
Yes
Enclosure Nominal Width:
250 mm
Installation Accessory Type:
wall-mounting
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Door Opening Side:
reversible 120 °)
Product Or Component Type:
compact enclosure
Range:
Spacial
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Doors:
front face 1
Lock Type:
3 mm double-bar lock
Variant Particularity:
sides made from a single folded section || back welded with double profile forming a protected sealed area
Mounting Plate Description:
without mounting plate
Color:
Gray RAL 7035)
Product Name:
Spacial CRN
Enclosure Nominal Depth:
150 mm
Device Application:
multi-purpose
Type Of Gland Plate:
standard
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Warranty:
18 months
Standards:
IEC 62208
Net Weight:
3.72 kg
Ip Degree Of Protection:
IP66 IEC 60529
Environmental Disclosure:
ENVPEP100104EN
Material:
body steel
Product Certifications:
UL || cUL || DNV-GL
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Surface Finish:
epoxy-polyester powder
Door Type:
Solid
Circularity Profile:
N/A
Removable Parts:
door by hinges || cable gland plate by screws
Ik Degree Of Protection:
IK10 IEC 62262
Brochure:
View
Catalog:
View
Datasheet:
View
$83.23

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 250 mm x (H) 300 mm x (D) 150 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
