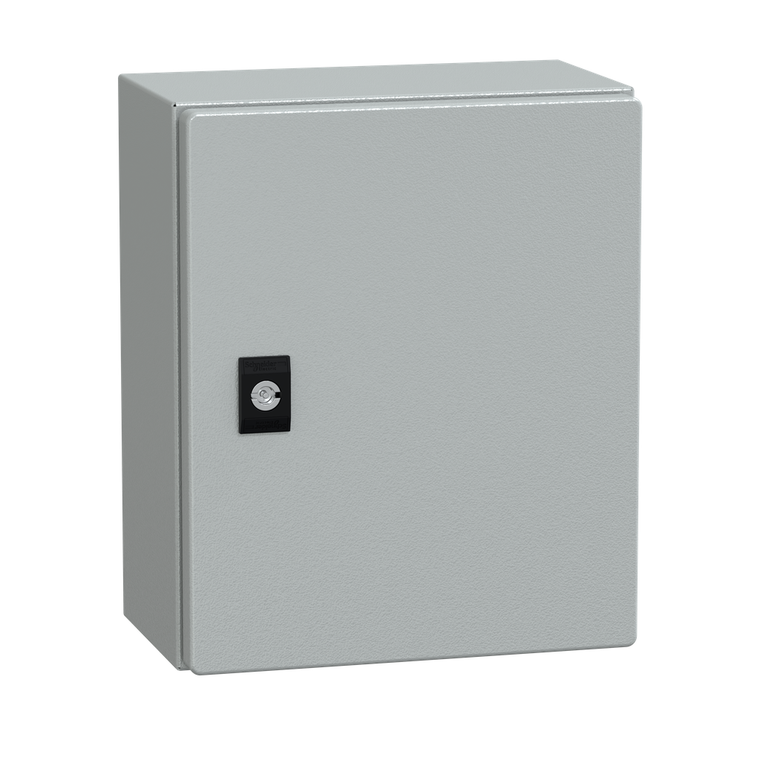

Schneider Electric NSYCRN325150P Crn 300X250X150 One Pl Door W Ch
Schneider Electric
$73.22
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN325150P Crn 300X250X150 One Pl Door W Ch
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 250 mm x (H) 300 mm x (D) 150 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Standards:
- IEC 62208
- Product Or Component Type:
- compact enclosure
- Door Type:
- Solid
- Material:
- enclosure steel || mounting plate galvanised steel
- Surface Finish:
- enclosure epoxy-polyester powder
- Ik Degree Of Protection:
- IK10 IEC 62262
- Rohs Exemption Information:
- Yes
- Enclosure Nominal Height:
- 300 mm
- Mounting Plate Description:
- plain
- Circularity Profile:
- N/A
- Color:
- enclosure Gray RAL 7035)
- Device Composition:
- 1 body || 1 cable gland plate || 1 door with lock || 1 mounting plate
- Net Weight:
- 4.502 kg
- Door Opening Side:
- reversible 120 °)
- Type Of Gland Plate:
- standard
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Range:
- Spacial
- Number Of Doors:
- front face 1
- Product Certifications:
- UL || cUL || DNV-GL
- Installation Accessory Type:
- wall-mounting
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Lock Type:
- 3 mm double-bar lock
- Environmental Disclosure:
- ENVPEP100104EN
- Accessibility For Operation:
- front
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Application:
- multi-purpose
- Enclosure Nominal Width:
- 250 mm
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Product Name:
- Spacial CRN
- Ip Degree Of Protection:
- IP66 IEC 60529
- Enclosure Nominal Depth:
- 150 mm
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
