Schneider Electric NSYCRN33200P Crn 300X300X200 One Pl Door W Ch
Schneider Electric
$109.90
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

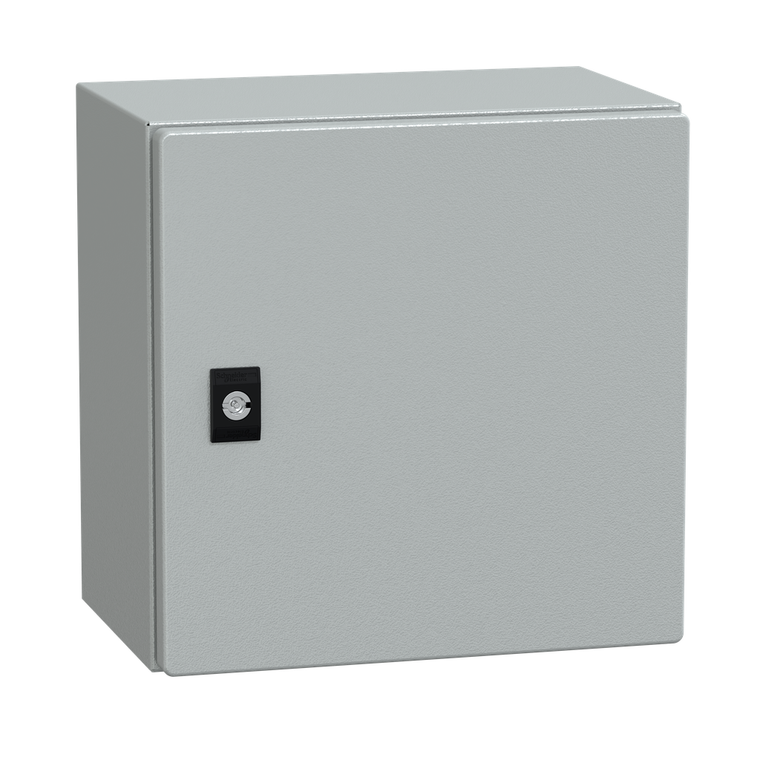

Schneider Electric NSYCRN33200P Crn 300X300X200 One Pl Door W Ch
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 300 mm x (H) 300 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Installation Accessory Type:
- wall-mounting
- Material:
- enclosure steel || mounting plate galvanised steel
- Product Name:
- Spacial CRN
- Mounting Plate Description:
- plain
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Door Type:
- Solid
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP100104EN
- Circularity Profile:
- N/A
- Product Certifications:
- cUL || UL || DNV-GL
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Application:
- multi-purpose
- Type Of Gland Plate:
- standard
- Surface Finish:
- enclosure epoxy-polyester powder
- Standards:
- IEC 62208
- Device Composition:
- 1 body || 1 cable gland plate || 1 door with lock || 1 mounting plate
- Lock Type:
- 3 mm double-bar lock
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ik Degree Of Protection:
- IK10 IEC 62262
- Enclosure Nominal Height:
- 300 mm
- Range:
- Spacial
- Net Weight:
- 5.87 kg
- Door Opening Side:
- reversible 120 °)
- Warranty:
- 18 months
- Product Or Component Type:
- compact enclosure
- Enclosure Nominal Width:
- 300 mm
- Rohs Exemption Information:
- Yes
- Enclosure Nominal Depth:
- 200 mm
- Variant Particularity:
- back welded with double profile forming a protected sealed area || sides made from a single folded section
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Accessibility For Operation:
- front
- Number Of Doors:
- front face 1
- Color:
- enclosure Gray RAL 7035)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
