Schneider Electric

Schneider Electric NSYCRN345150 Crn 300X450X150 One Plain Door

(No reviews yet) Write a Review
SKU:
NSYCRN345150
UPC:
3606480212475
Condition:
New
Mounting Plate Description:
without mounting plate
Ip Degree Of Protection:
IP66 IEC 60529
Circularity Profile:
N/A
Removable Parts:
door by hinges || cable gland plate by screws
Warranty:
18 months
Enclosure Nominal Height:
300 mm
Type Of Gland Plate:
standard
Standards:
IEC 62208
Color:
Gray RAL 7035)
Net Weight:
5.611 kg
Installation Accessory Type:
wall-mounting
Surface Finish:
epoxy-polyester powder
Device Composition:
1 body || 1 door || 1 lock || 1 cable gland plate top and bottom
Ik Degree Of Protection:
IK10 IEC 62262
Enclosure Nominal Width:
450 mm
Product Name:
Spacial CRN
Environmental Disclosure:
ENVPEP100104EN
Accessibility For Operation:
front
Number Of Doors:
front face 1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Material:
body steel
Range:
Spacial
Door Type:
Solid
Enclosure Nominal Depth:
150 mm
Mercury Free:
Yes
Lock Type:
3 mm double-bar lock
Product Certifications:
cUL || UL || DNV-GL
Product Or Component Type:
compact enclosure
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Variant Particularity:
sides made from a single folded section || back welded with double profile forming a protected sealed area
Rohs Exemption Information:
Yes
Device Application:
multi-purpose
Sustainable Offer Status:
Green Premium product
Door Opening Side:
reversible 120 °)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Brochure:
View
Catalog:
View
Datasheet:
View
$322.53

Description

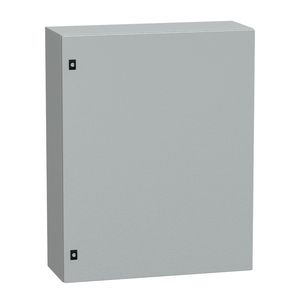

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 450 mm x (H) 300 mm x (D) 150 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
