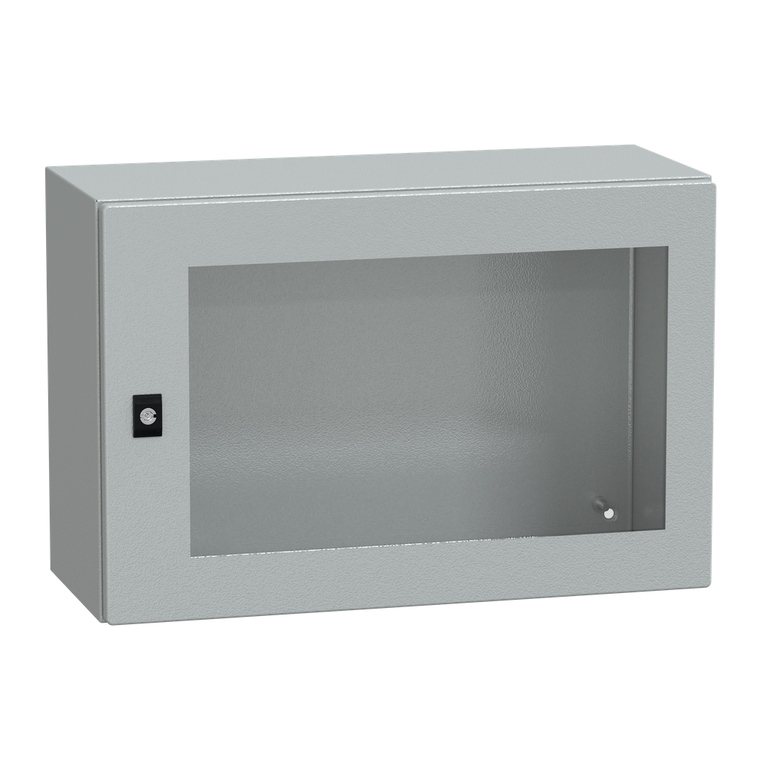

Schneider Electric NSYCRN46250T Crn 400X600X250 Glazed Door
Schneider Electric
$250.82
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN46250T Crn 400X600X250 Glazed Door
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 400 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Type Of Gland Plate:
- standard
- Enclosure Nominal Height:
- 400 mm
- Color:
- Gray RAL 7035)
- Lock Type:
- 3 mm double-bar lock
- Circularity Profile:
- N/A
- Enclosure Nominal Depth:
- 250 mm
- Number Of Doors:
- front face 1
- Warranty:
- 18 months
- Surface Finish:
- epoxy-polyester powder
- Ip Degree Of Protection:
- IP66 IEC 60529
- Net Weight:
- 10.6 kg
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Standards:
- IEC 62208
- Range:
- Spacial
- Door Type:
- Glass
- Mercury Free:
- Yes
- Material:
- body steel || door steel and security glass
- Installation Accessory Type:
- wall-mounting
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK08 IEC 62262
- Environmental Disclosure:
- ENVPEP100104EN
- Device Composition:
- 1 body || 1 cable gland plate || 1 door || 1 lock
- Removable Parts:
- door by hinges || cable gland plate by screws
- Product Certifications:
- cUL || UL || DNV-GL
- Accessibility For Operation:
- front
- Device Application:
- multi-purpose
- Mounting Plate Description:
- without mounting plate
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Product Name:
- Spacial CRN
- Enclosure Nominal Width:
- 600 mm
- Product Or Component Type:
- compact enclosure
- Door Opening Side:
- reversible 120 °)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
