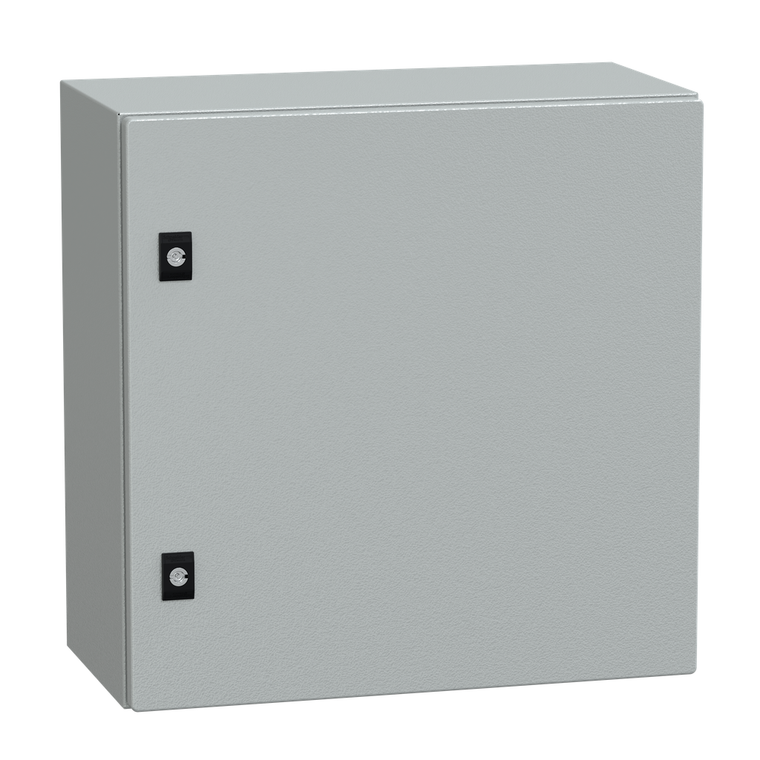

Schneider Electric NSYCRN55250P Crn 500X500X250 One Pl Door W Ch
Schneider Electric
$166.94
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN55250P Crn 500X500X250 One Pl Door W Ch
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 500 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Standards:
- IEC 62208
- Rohs Exemption Information:
- Yes
- Product Name:
- Spacial CRN
- Enclosure Nominal Depth:
- 250 mm
- Range:
- Spacial
- Door Type:
- Solid
- Color:
- enclosure Gray RAL 7035)
- Product Or Component Type:
- compact enclosure
- Enclosure Nominal Width:
- 500 mm
- Warranty:
- 18 months
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Variant Particularity:
- back welded with double profile forming a protected sealed area || sides made from a single folded section
- Circularity Profile:
- N/A
- Enclosure Nominal Height:
- 500 mm
- Material:
- enclosure steel || mounting plate galvanised steel
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mounting Plate Description:
- plain
- Ik Degree Of Protection:
- IK10 IEC 62262
- Installation Accessory Type:
- wall-mounting
- Number Of Doors:
- front face 1
- Device Application:
- multi-purpose
- Product Certifications:
- UL || cUL || DNV-GL
- Sustainable Offer Status:
- Green Premium product
- Type Of Gland Plate:
- standard
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Composition:
- 1 body || 1 cable gland plate || 1 door with lock || 1 mounting plate
- Door Opening Side:
- reversible 120 °)
- Environmental Disclosure:
- ENVPEP100104EN
- Lock Type:
- 3 mm double-bar lock
- Surface Finish:
- enclosure epoxy-polyester powder
- Accessibility For Operation:
- front
- Ip Degree Of Protection:
- IP66 IEC 60529
- Net Weight:
- 13.832 kg
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
