Schneider Electric NSYCRN64200P Crn 600X400X200 One Pl Door W Ch
Schneider Electric
$171.43
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

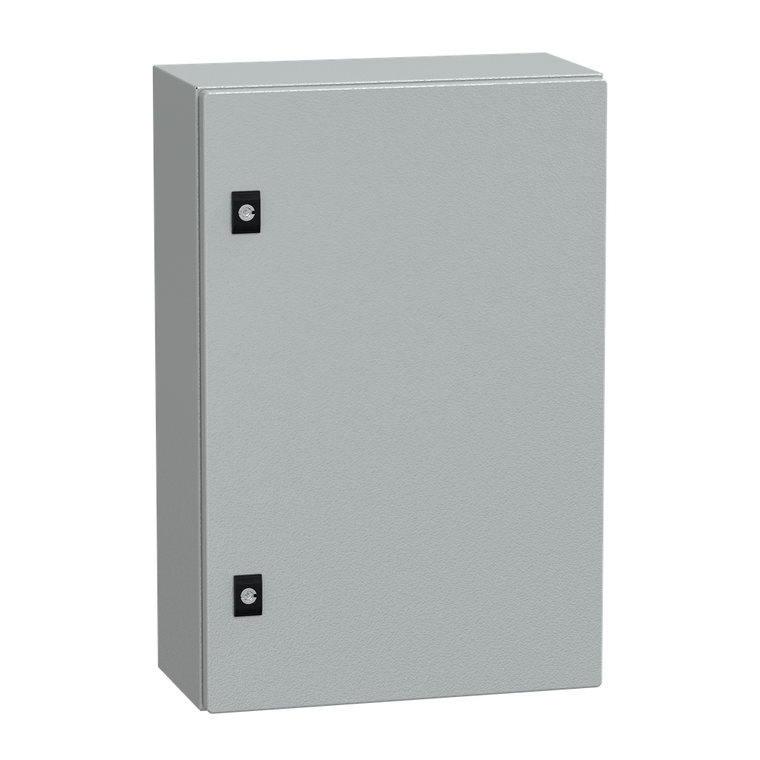

Schneider Electric NSYCRN64200P Crn 600X400X200 One Pl Door W Ch
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 600 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Net Weight:
- 12.813 kg
- Product Or Component Type:
- compact enclosure
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Standards:
- IEC 62208
- Rohs Exemption Information:
- Yes
- Product Certifications:
- cUL || UL || DNV-GL
- Range:
- Spacial
- Ik Degree Of Protection:
- IK10 IEC 62262
- Color:
- enclosure Gray RAL 7035)
- Environmental Disclosure:
- ENVPEP100104EN
- Warranty:
- 18 months
- Enclosure Nominal Depth:
- 200 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Number Of Doors:
- front face 1
- Device Application:
- multi-purpose
- Sustainable Offer Status:
- Green Premium product
- Lock Type:
- 3 mm double-bar lock
- Door Opening Side:
- reversible 120 °)
- Type Of Gland Plate:
- standard
- Device Composition:
- 1 body || 1 cable gland plate || 1 door with lock || 1 mounting plate
- Product Name:
- Spacial CRN
- Enclosure Nominal Height:
- 600 mm
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Accessibility For Operation:
- front
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Enclosure Nominal Width:
- 400 mm
- Circularity Profile:
- N/A
- Material:
- enclosure steel || mounting plate galvanised steel
- Door Type:
- Solid
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Surface Finish:
- enclosure epoxy-polyester powder
- Mounting Plate Description:
- plain
- Installation Accessory Type:
- wall-mounting
