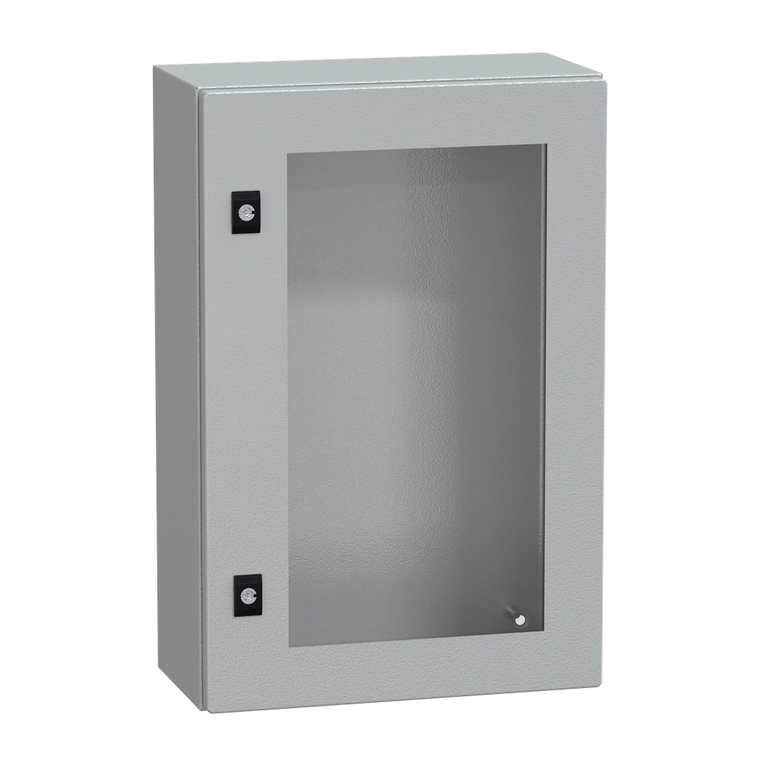

Schneider Electric NSYCRN64200T Crn 600X400X200 Glazed Door

(No reviews yet) Write a Review
SKU:
NSYCRN64200T
UPC:
3606480212147
Condition:
New
Mercury Free:
Yes
Door Type:
Glass
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Type Of Gland Plate:
standard
Device Application:
multi-purpose
Number Of Doors:
front face 1
Standards:
IEC 62208
Product Name:
Spacial CRN
Product Or Component Type:
compact enclosure
Accessibility For Operation:
front
Lock Type:
3 mm double-bar lock
Variant Particularity:
sides made from a single folded section || back welded with double profile forming a protected sealed area
Removable Parts:
door by hinges || cable gland plate by screws
Enclosure Nominal Width:
400 mm
Range:
Spacial
Environmental Disclosure:
ENVPEP100104EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
cUL || UL || DNV-GL
Ip Degree Of Protection:
IP66 IEC 60529
Net Weight:
9.922 kg
Rohs Exemption Information:
Yes
Color:
Gray RAL 7035)
Warranty:
18 months
Enclosure Nominal Depth:
200 mm
Enclosure Nominal Height:
600 mm
Surface Finish:
epoxy-polyester powder
Door Opening Side:
reversible 120 °)
Installation Accessory Type:
wall-mounting
Sustainable Offer Status:
Green Premium product
Mounting Plate Description:
without mounting plate
Material:
body steel || door steel and security glass
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ik Degree Of Protection:
IK08 IEC 62262
Circularity Profile:
N/A
Brochure:
View
Datasheet:
View
$240.51

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 600 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
