Schneider Electric

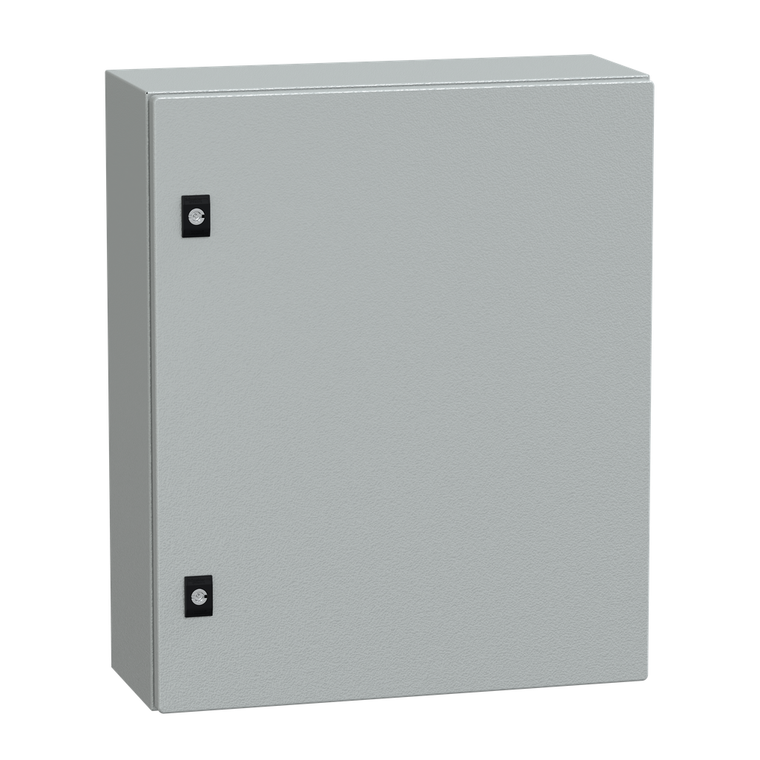

Schneider Electric NSYCRN65200 Crn 600X500X200 One Plain Door

(No reviews yet) Write a Review
SKU:
NSYCRN65200
UPC:
3606480212079
Condition:
New
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Number Of Doors:
front face 1
Material:
body steel
Enclosure Nominal Depth:
200 mm
Ik Degree Of Protection:
IK10 IEC 62262
Product Or Component Type:
compact enclosure
Circularity Profile:
N/A
Device Application:
multi-purpose
Enclosure Nominal Width:
500 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Plate Description:
without mounting plate
Mercury Free:
Yes
Lock Type:
3 mm double-bar lock
Removable Parts:
door by hinges || cable gland plate by screws
Installation Accessory Type:
wall-mounting
Environmental Disclosure:
ENVPEP100104EN
Range:
Spacial
Rohs Exemption Information:
Yes
Type Of Gland Plate:
standard
Ip Degree Of Protection:
IP66 IEC 60529
Standards:
IEC 62208
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Color:
Gray RAL 7035)
Net Weight:
11.182 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Door Type:
Solid
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Accessibility For Operation:
front
Product Name:
Spacial CRN
Enclosure Nominal Height:
600 mm
Surface Finish:
epoxy-polyester powder
Door Opening Side:
reversible 120 °)
Variant Particularity:
sides made from a single folded section || back welded with double profile forming a protected sealed area
Product Certifications:
cUL || UL || DNV-GL
Brochure:
View
Catalog:
View
Datasheet:
View
$165.69

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 600 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
