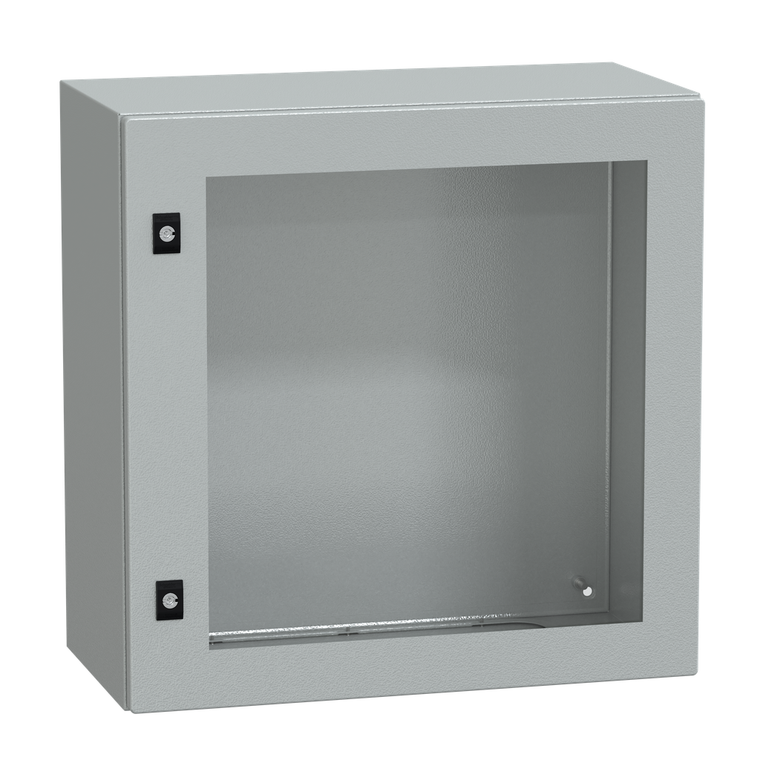

Schneider Electric NSYCRN66300T Crn 600X600X300 Glazed Door

(No reviews yet) Write a Review
SKU:
NSYCRN66300T
UPC:
3.60648E+12
Condition:
New
Enclosure Nominal Height:
600 mm
Enclosure Nominal Depth:
300 mm
Mounting Plate Description:
without mounting plate
Door Type:
Glass
Color:
Gray RAL 7035)
Number Of Doors:
front face 1
Environmental Disclosure:
ENVPEP100104EN
Rohs Exemption Information:
Yes
Net Weight:
15.8 kg
Product Certifications:
cUL || UL || DNV-GL
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Enclosure Nominal Width:
600 mm
Accessibility For Operation:
front
Removable Parts:
door by hinges || cable gland plate by screws
Door Opening Side:
reversible 120 °)
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Variant Particularity:
back welded with double profile forming a protected sealed area || sides made from a single folded section
Installation Accessory Type:
wall-mounting
Product Name:
Spacial CRN
Lock Type:
3 mm double-bar lock
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Material:
body steel || door steel and security glass
Surface Finish:
epoxy-polyester powder
Standards:
IEC 62208
Type Of Gland Plate:
standard
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Device Application:
multi-purpose
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ik Degree Of Protection:
IK08 IEC 62262
Range:
Spacial
Product Or Component Type:
compact enclosure
Circularity Profile:
N/A
Ip Degree Of Protection:
IP66 IEC 60529
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric NSYCRN66300T Crn 600X600X300 Glazed Door
  • Schneider Electric NSYCRN66300T Crn 600X600X300 Glazed Door
$366.43

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 600 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
