Schneider Electric NSYCRN75200P Crn 700X500X200 One Pl Door W Ch
Schneider Electric
$227.25
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

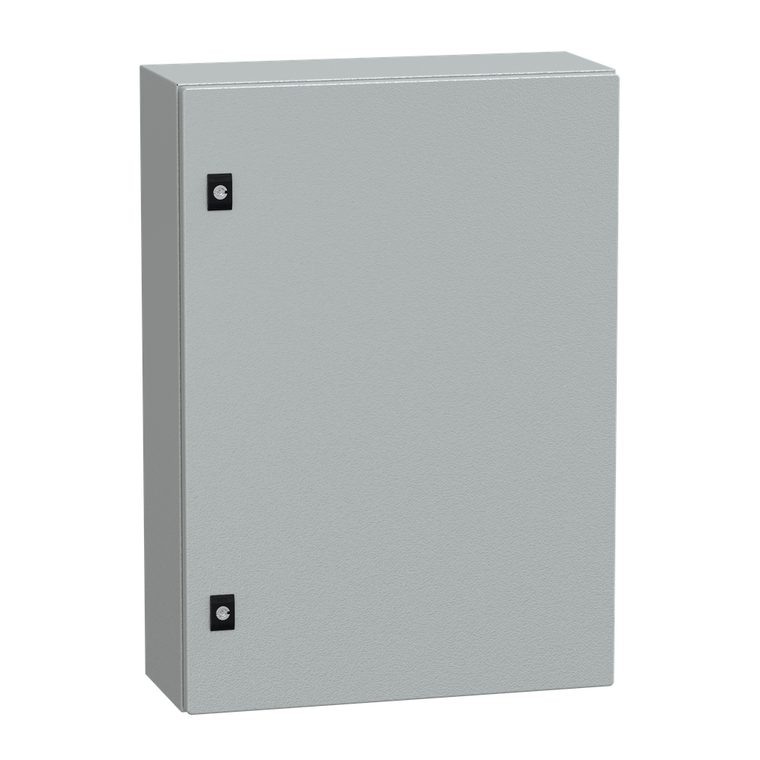

Schneider Electric NSYCRN75200P Crn 700X500X200 One Pl Door W Ch
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 700 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Door Type:
- Solid
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Installation Accessory Type:
- wall-mounting
- Number Of Doors:
- front face 1
- Rohs Exemption Information:
- Yes
- Product Name:
- Spacial CRN
- Standards:
- IEC 62208
- Range:
- Spacial
- Warranty:
- 18 months
- Product Or Component Type:
- compact enclosure
- Environmental Disclosure:
- ENVPEP100104EN
- Ik Degree Of Protection:
- IK10 IEC 62262
- Mounting Plate Description:
- plain
- Net Weight:
- 18 kg
- Enclosure Nominal Width:
- 500 mm
- Color:
- enclosure Gray RAL 7035)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- cUL || UL || DNV-GL
- Ip Degree Of Protection:
- IP66 IEC 60529
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Application:
- multi-purpose
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Door Opening Side:
- reversible 120 °)
- Mercury Free:
- Yes
- Accessibility For Operation:
- front
- Lock Type:
- 3 mm double-bar lock
- Circularity Profile:
- N/A
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Surface Finish:
- enclosure epoxy-polyester powder
- Device Composition:
- 1 body || 1 cable gland plate || 1 door with lock || 1 mounting plate
- Material:
- enclosure steel || mounting plate galvanised steel
- Sustainable Offer Status:
- Green Premium product
- Type Of Gland Plate:
- standard
- Enclosure Nominal Depth:
- 200 mm
- Enclosure Nominal Height:
- 700 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
