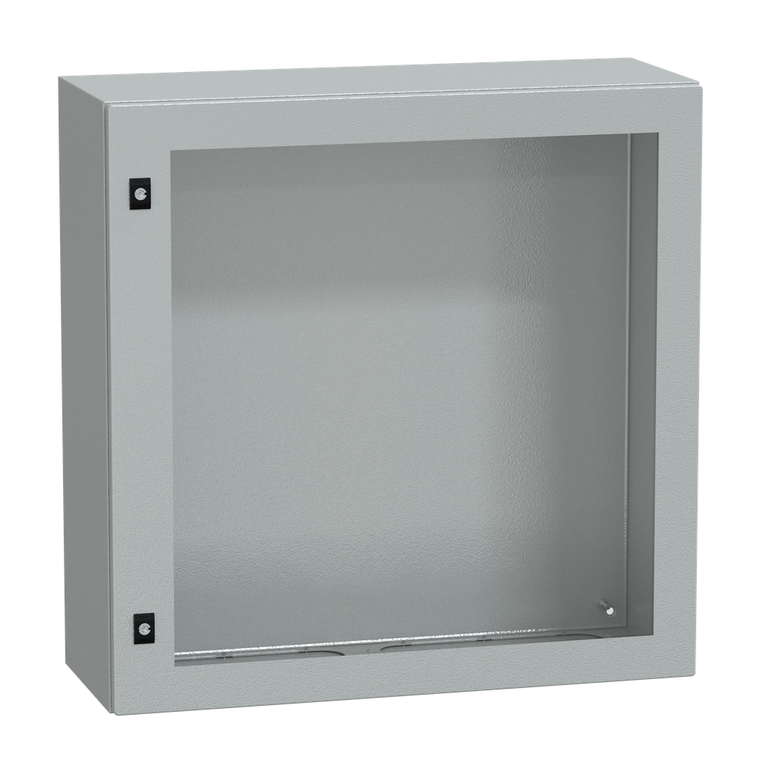

Schneider Electric NSYCRN88300T Crn 800X800X300 Glazed Door

(No reviews yet) Write a Review
SKU:
NSYCRN88300T
UPC:
3.60648E+12
Condition:
New
Device Composition:
1 body || 1 door || 1 lock || 2 cable gland plate bottom
Removable Parts:
door by hinges || cable gland plate by screws
Range:
Spacial
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Product Or Component Type:
compact enclosure
Installation Accessory Type:
wall-mounting
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Door Type:
Glass
Environmental Disclosure:
ENVPEP100104EN
Enclosure Nominal Depth:
300 mm
Color:
Gray RAL 7035)
Standards:
IEC 62208
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
multi-purpose
Warranty:
18 months
Mounting Plate Description:
without mounting plate
Ik Degree Of Protection:
IK08 IEC 62262
Net Weight:
26.703 kg
Surface Finish:
epoxy-polyester powder
Enclosure Nominal Width:
800 mm
Number Of Doors:
front face 1
Type Of Gland Plate:
standard
Product Certifications:
cUL || UL || DNV-GL
Enclosure Nominal Height:
800 mm
Product Name:
Spacial CRN
Accessibility For Operation:
front
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP66 IEC 60529
Variant Particularity:
sides made from a single folded section || back welded with double profile forming a protected sealed area
Circularity Profile:
N/A
Lock Type:
3 mm double-bar lock
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Material:
body steel || door steel and security glass
Door Opening Side:
reversible 120 °)
  • Schneider Electric NSYCRN88300T Crn 800X800X300 Glazed Door
  • Schneider Electric NSYCRN88300T Crn 800X800X300 Glazed Door
$922.44

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 800 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
