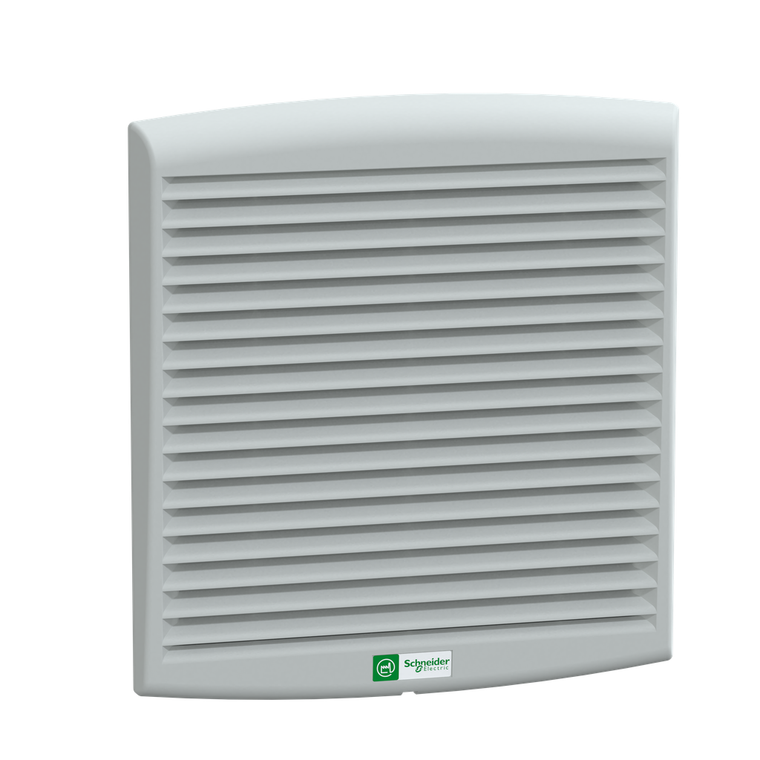

Schneider Electric NSYCVF165M115PF Filterfan 165M3/H 115V Ip54
Schneider Electric
$113.45
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCVF165M115PF Filterfan 165M3/H 115V Ip54
ClimaSys forced vent. IP54, 165m3/h, 115V, with outlet grille and filter G2
- Height:
- external 268 mm
- Product Or Component Type:
- fan
- Type Of Ventilation Filter:
- standard
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant with Exemptions
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- Faston connector
- Bearing Type:
- ball
- Product Name:
- ClimaSys CV
- Air Flow:
- free flow rate with standard filter: 165 m3/h at 50 Hz || free flow rate with standard filter: 193 m3/h at 60 Hz
- Mercury Free:
- Yes
- Input Voltage:
- 115 V 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Material:
- outlet grille injected thermoplastic (ASA PC)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Power Range:
- 15.5 W 50 Hz || 14.4 W 60 Hz
- [Us] Rated Supply Voltage:
- 75...126 V
- Color:
- outlet grille Gray RAL 7035)
- Environmental Disclosure:
- ENVPEP110717EN
- Depth:
- external 104 mm
- Range:
- ClimaSys
- Noise Level:
- 50-51 dB
- Ambient Air Temperature For Operation:
- -20-60 °C
- Cut-Out Dimensions:
- 223 x 223 mm
- Net Weight:
- 1.14 kg
- Line Rated Current:
- 0.2-0.2 A 50 Hz || 0.18-0.18 A 60 Hz
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Width:
- external 248 mm
- Ip Degree Of Protection:
- IP54
- Condition Of Use:
- outside temperature must be 5 °C lower than inside temperature || filter must be cleaned and replaced regularly || overfrequent filter replacement should be avoided || flow rates depends on the work point, see ProClima software || surrounding enviro
- Device Composition:
- 1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template || 1 power cord
- Circularity Profile:
- ENVEOLI1107017EN
- Maximum Pressure:
- 50 Pa flow rate 0 m³/h
