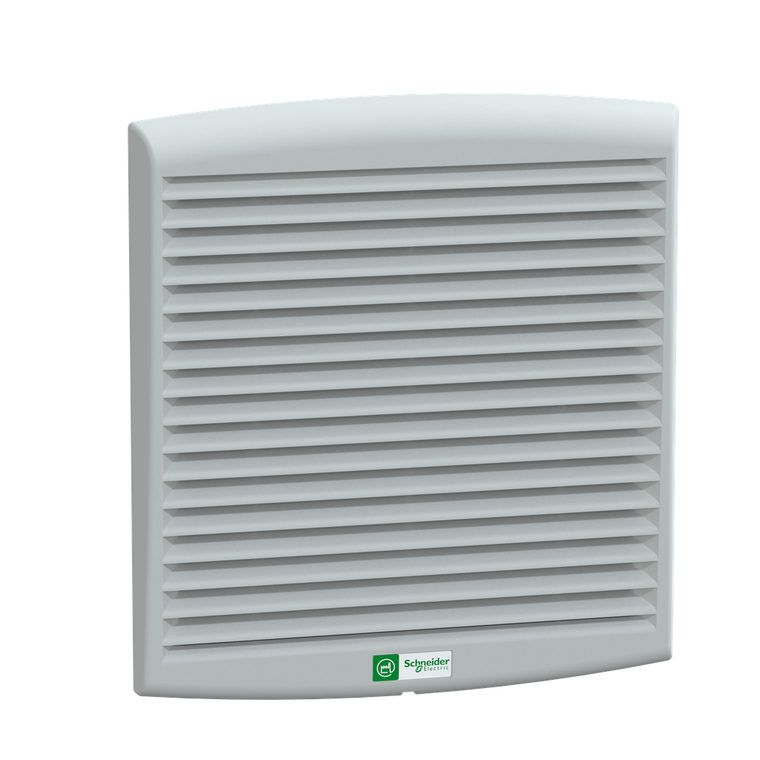

Schneider Electric NSYCVF165M24DPF Filterfan 165M3/H 24Vdc Ip54
Schneider Electric
$137.78
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCVF165M24DPF Filterfan 165M3/H 24Vdc Ip54
ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -10-70 °C
- Bearing Type:
- ball
- Line Rated Current:
- 0.3-0.3 A
- Range:
- ClimaSys
- Connections - Terminals:
- cable
- Power Range:
- 8 W
- Condition Of Use:
- surrounding environment must be relatively clean || flow rates depends on the work point, see ProClima software || overfrequent filter replacement should be avoided || filter must be cleaned and replaced regularly || outside temperature must be 5 °C
- Product Or Component Type:
- fan
- Environmental Disclosure:
- ENVPEP110717EN
- Material:
- outlet grille injected thermoplastic (ASA PC)
- Mercury Free:
- Yes
- Input Voltage:
- 24 V DC
- Warranty:
- 18 months
- Maximum Pressure:
- 50 Pa flow rate 0 m³/h
- Cut-Out Dimensions:
- 223 x 223 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Device Composition:
- 1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template || 1 power cord
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Color:
- outlet grille Gray RAL 7035)
- Noise Level:
- 50-51 dB
- Air Flow:
- free flow rate with standard filter: 188 m3/h
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection:
- IP54
- Ambient Air Temperature For Storage:
- -40-70 °C
- Height:
- external 268 mm
- Depth:
- external 104 mm
- Net Weight:
- 0.81 kg
- Type Of Ventilation Filter:
- standard
- Product Name:
- ClimaSys CV
- [Us] Rated Supply Voltage:
- 10...27.6 V
- Width:
- external 248 mm
- Circularity Profile:
- ENVEOLI1107017EN
