Schneider Electric

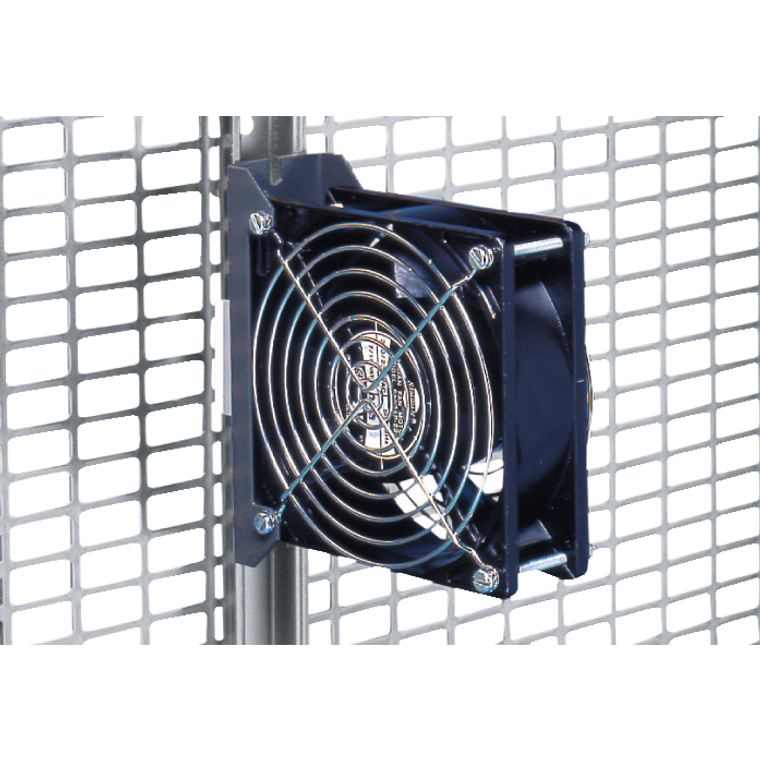

Schneider Electric NSYCVF170M115 Filterfan170M3/H115Vwithout Grid

SKU:

NSYCVF170M115

UPC:

3.60648E+12

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Circularity Profile:

ENVEOLI1107017EN

Rohs Exemption Information:

Yes

Environmental Disclosure:

ENVPEP110717EN

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Input Voltage:

115 V 50/60 Hz

Product Or Component Type:

fan

Device Composition:

1 axial motor || 2 protective grille on the front and rear surfaces || 1 fixing collar

Power Range:

17 W

Range:

ClimaSys

Eu Rohs Directive:

Compliant with Exemptions

Mercury Free:

Yes

Depth:

external 38 mm

Width:

external 119 mm

Air Flow:

free flow rate: 170 m3/h at 50 Hz

Height:

external 119 mm

Warranty:

18 months

Noise Level:

41-41 dB

Net Weight:

0.82 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Name:

ClimaSys CV

Material:

protective grille steel
