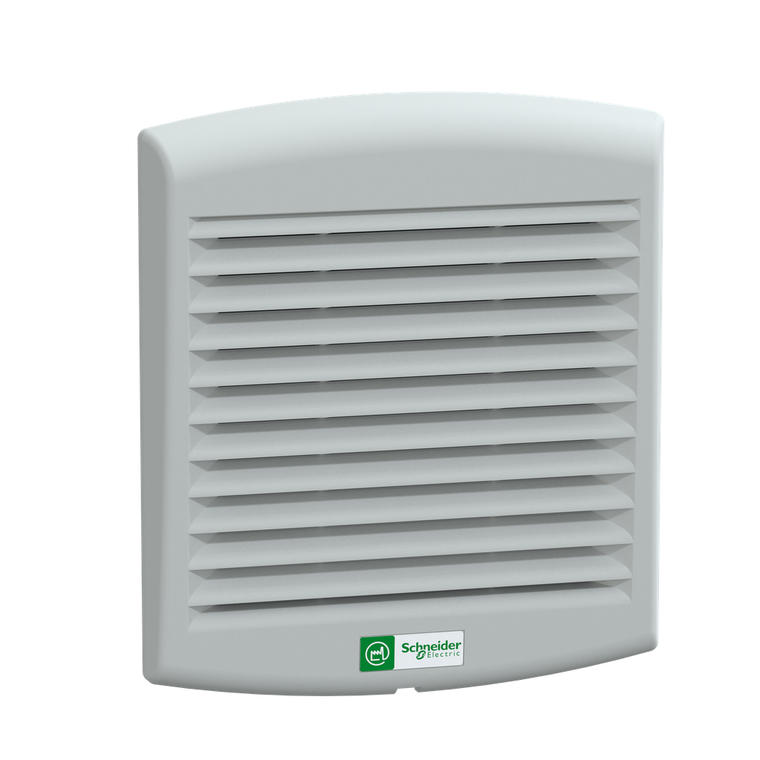

Schneider Electric NSYCVF85M24DPF Filterfan 85M3/H 24V Dc Ip54

Schneider Electric NSYCVF85M24DPF Filterfan 85M3/H 24V Dc Ip54

Schneider Electric
SKU:
NSYCVF85M24DPF
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$93.45
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Additional Information
Net Weight:
0.48 kg
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-40-70 °C
Maximum Pressure:
50 Pa flow rate 0 m³/h
Power Range:
7.6 W
Type Of Ventilation Filter:
standard
Bearing Type:
ball
Warranty:
18 months
Material:
outlet grille injected thermoplastic (ASA PC)
Noise Level:
46-49 dB
Product Name:
ClimaSys CV
Rohs Exemption Information:
Yes
Depth:
external 62 mm
Mercury Free:
Yes
Color:
outlet grille Gray RAL 7035)
Ambient Air Temperature For Operation:
-10-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Us] Rated Supply Voltage:
10...27.6 V
Ip Degree Of Protection:
IP54
Input Voltage:
24 V DC
Condition Of Use:
overfrequent filter replacement should be avoided || outside temperature must be 5 °C lower than inside temperature || surrounding environment must be relatively clean || filter must be cleaned and replaced regularly || flow rates depends on the wor
Product Or Component Type:
fan
Circularity Profile:
ENVEOLI1107017EN
Range:
ClimaSys
Width:
external 150 mm
Height:
external 170 mm
Sustainable Offer Status:
Green Premium product
Connections - Terminals:
cable
Cut-Out Dimensions:
125 x 125 mm
Air Flow:
free flow rate with standard filter: 80 m3/h
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
0.3-0.3 A
Environmental Disclosure:
ENVPEP110717EN
Device Composition:
1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template || 1 power cord
