Schneider Electric NSYDPLM200 Sliding Support Plm43/54
Schneider Electric
$108.81
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

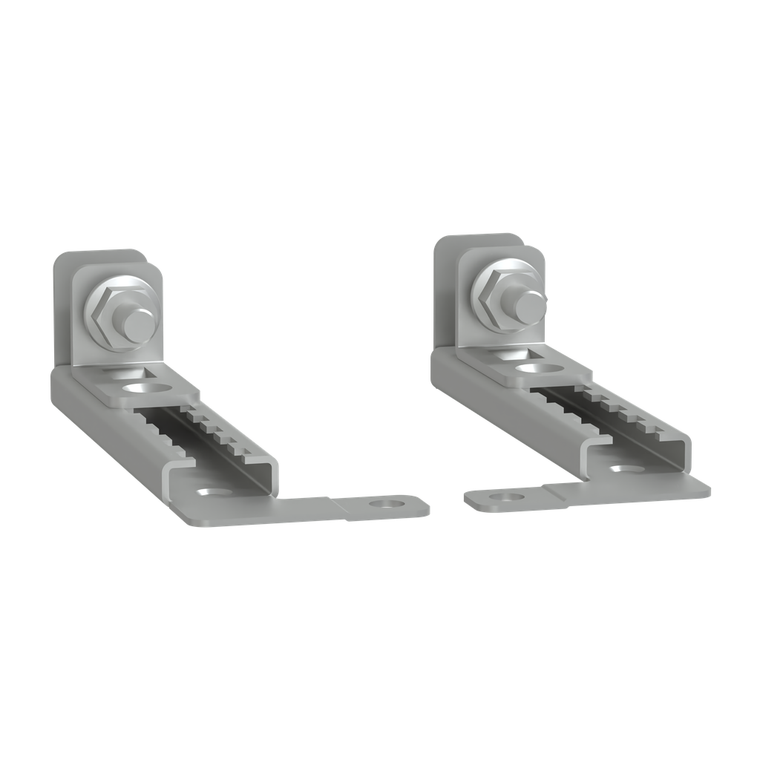

Schneider Electric NSYDPLM200 Sliding Support Plm43/54
Set of 4 step slides with brackets for adjustment of mounting plate in PLM 43/54. Max depth adjustment is 156 mm, Min depth adjustment is 94 mm. Multi-purpose mounting accessory. Mounting on sides of enclosure. Adjustment is In depth of the plate or other accessories in steps of 12.5 mm. Galvanised Steel. 4 sliding rails and 4 sliding support incl.
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Accessory / Separate Part Category:
- mounting accessory
- Product Or Component Type:
- step slide
- Fixing Mode:
- by fixing element - enclosure boss
- Environmental Disclosure:
- ENVPEP2202003EN
- Circularity Profile:
- N/A
- Device Application:
- multi-purpose
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Quantity Per Set:
- set of 1
- Range Compatibility:
- Thalassa Thalassa PLM
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Device Composition:
- 4 sliding rails || 4 sliding support || fixing elements
- Adjustment:
- in depth of the plate or other accessories in steps of 12.5 mm
- Depth:
- maximum depth adjustment 156 mm || minimun depth adjustment 94 mm
- Mounting Location:
- sides of enclosure
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Material:
- galvanised steel
- Datasheet:
- View
