Schneider Electric NSYECVT3V440 Blanking Plate With 3 Fans
Schneider Electric

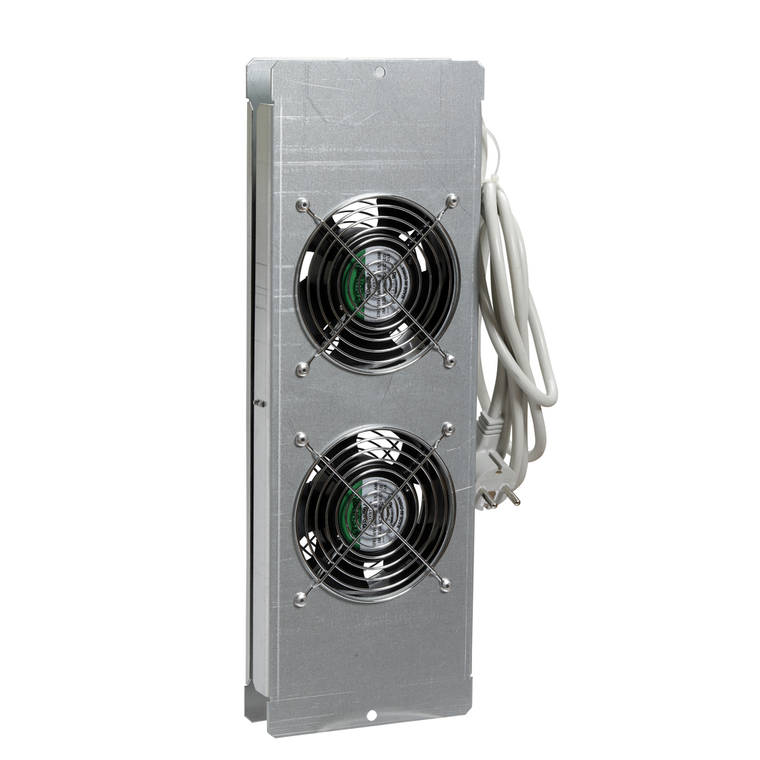

Schneider Electric NSYECVT2V440 Blanking Plate Whit 2 Fans
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 2 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
- Mercury Free:
- Yes
- Device Composition:
- fixing elements || 1 plate || 1 2 m power cord
- Device Application:
- electronic application
- Accessory / Separate Part Type:
- ventilation plate
- Warranty:
- 18 months
- Fixing Mode:
- by screws
- Air Flow:
- 170 m3/h
- Mounting Location:
- on outside of the roof
- Noise Level:
- 34 dB
- Range Compatibility:
- Actassi VDA || Actassi VDS
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Quantity Per Set:
- set of 1
- Cable Gland Type:
- ventilated || with 2 fans
- Product Compatibility:
- SF roof for Actassi plates
- Product Or Component Type:
- fan
- Rohs Exemption Information:
- Yes
- Range:
- Actassi
- Material:
- plate galvanised steel
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- fixing centers 420 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Catalog:
- View
- Datasheet:
- View
