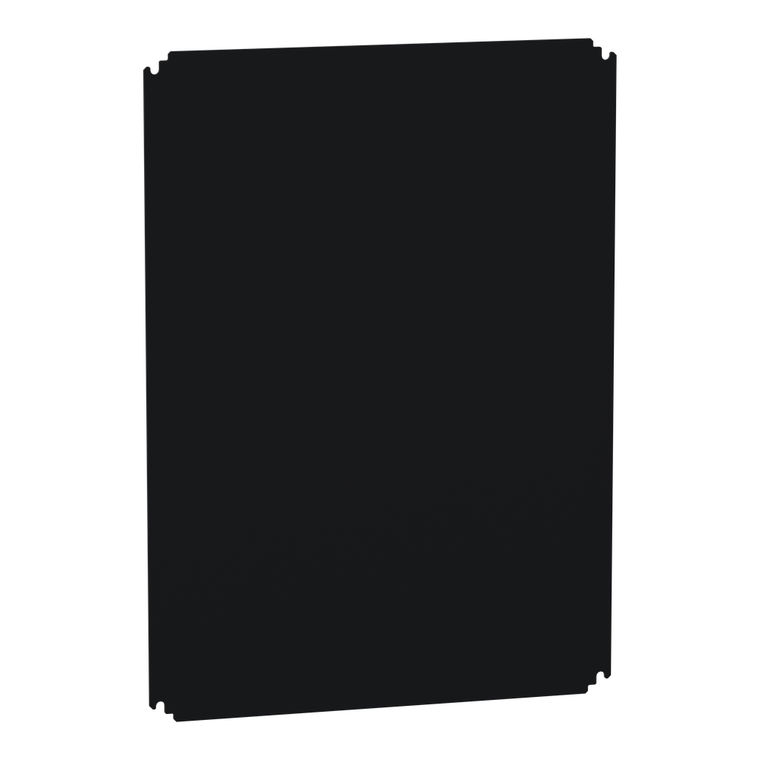

Schneider Electric NSYMB86 Bakelite Mount. Plate 800X600

SKU:

NSYMB86

UPC:

3606480182785

MPN:

Condition:

New

Warranty:

18 months

Net Weight:

23 kg

Circularity Profile:

N/A

Accessory / Separate Part Category:

mounting accessory

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Permanent Permissible Load:

120 kg

Range:

Spacial

Mounting Plate Description:

plain

Environmental Disclosure:

ENVPEP100104EN

Range Compatibility:

Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM

Product Or Component Type:

mounting plate

Thickness:

4 mm

Variant Particularity:

with enclosures H800 x W1200

Device Application:

multi-purpose

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Quantity Per Set:

set of 1

Sustainable Offer Status:

Green Premium product

Mounting Location:

direct fixing on backstuds || step slide

Material:

bakelite

Color:

Black RAL 9005)

Width:

550 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Height:

765 mm

Fixing Mode:

screwed on backstuds M8 || by fixing element

Enclosure Nominal Dimensions:

H: 800 mm W: 600 mm || - H: 800 mm W: 1200 mm

Rohs Exemption Information:

Yes
