Schneider Electric NSYMPP86 Polyester Mount. Plate 800X600
Schneider Electric

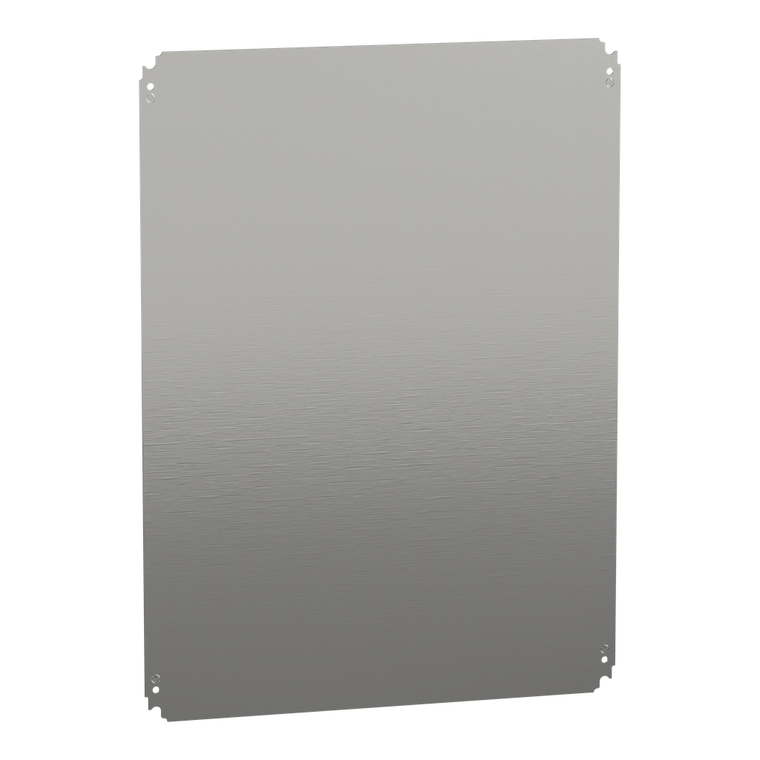

Schneider Electric NSYMM86 Plain Mount. Plate 800X600
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is600 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel. Set of 1. Variant particularity is with enclosures H800 x W1200.
- Permanent Permissible Load:
- 135 kg
- Accessory / Separate Part Category:
- mounting accessory
- Reach Free Of Svhc:
- Yes
- Material:
- galvanised steel
- Net Weight:
- 8.07 kg
- Device Application:
- multi-purpose
- Height:
- 750 mm
- Mounting Location:
- step slide || direct fixing on backstuds
- Quantity Per Set:
- set of 1
- Range:
- Spacial
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mounting Plate Description:
- plain
- Toxic Heavy Metal Free:
- Yes
- Variant Particularity:
- with enclosures H800 x W1200
- Range Compatibility:
- Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
- Enclosure Nominal Dimensions:
- H: 800 mm W: 600 mm
- Mercury Free:
- Yes
- Width:
- 550 mm
- Thickness:
- 2.5 mm
- Lead Time:
- Usually Ships within 4 Weeks
- Circularity Profile:
- N/A
- Fixing Mode:
- screwed on backstuds M8 || by fixing element
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP2202003EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- mounting plate
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
