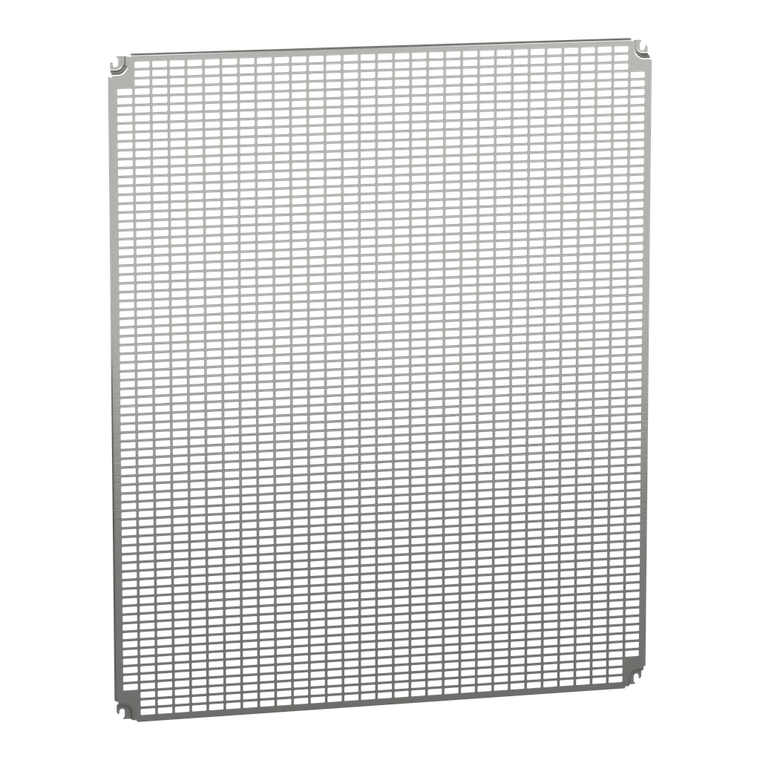

Schneider Electric NSYMR1210 Telequick Mount. Plate 1200X1000

Schneider Electric NSYMR1210 Telequick Mount. Plate 1200X1000

Schneider Electric
SKU:
NSYMR1210
|
UPC:
3606480183577
Availability:
Contact us to confirm availability and lead times.
$401.22
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm
Additional Information
Product Or Component Type:
mounting plate
Variant Particularity:
installation in rear of enclosure
Maximum Load:
250 kg S3D, CRN, S3X enclosures || 150 kg PLM enclosure
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Range:
Spacial
Device Application:
multi-purpose
Width:
951 mm
Quantity Per Set:
set of 1
Mounting Plate Description:
Telequick perforated
Surface And Useful Surface:
108.9 dm²
Mounting Location:
direct fixing on backstuds || step slide
Height:
1145 mm
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Surface Finish:
zinc coated
Fixing Mode:
screwed on backstuds M8 || by fixing element
Thickness:
2 mm
Circularity Profile:
N/A
Range Compatibility:
Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Enclosure Nominal Dimensions:
H: 1200 mm W: 1000 mm
Net Weight:
7.8 kg
Cut-Out Dimensions:
11 x 26 mm
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Toxic Heavy Metal Free:
Yes
Material:
steel
Warranty:
18 months
Mercury Free:
Yes
Permanent Permissible Load:
272.2 kg S3D, CRN, S3X enclosures || 163.3 kg PLM enclosure
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP2202003EN
Number Of Slots:
2325
Accessory / Separate Part Category:
mounting accessory
Catalog:
View
Datasheet:
View
