Schneider Electric NSYPFXPLM Inox Wm Lugs F Plm43To108

Schneider Electric NSYPFXPLM Inox Wm Lugs F Plm43To108

Schneider Electric
SKU:
NSYPFXPLM
|
UPC:
3606480191978
Availability:
Contact us to confirm availability and lead times.
$32.38
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

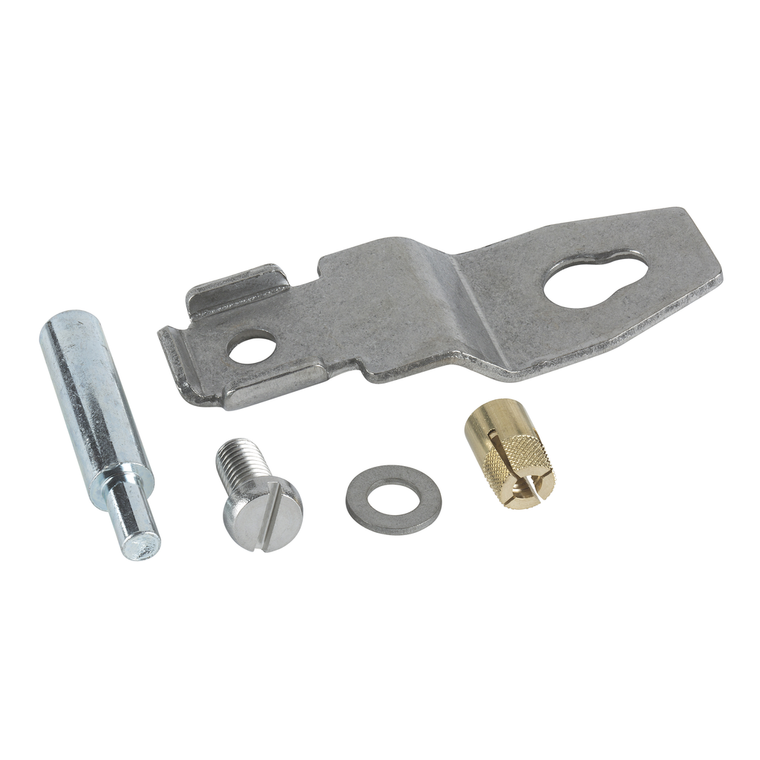

Thalassa PLM set of 4 stainless steel wall mounting lugs for PLM3025 to 108. Multi purpose. 40 x 155 x 80 mm. Wall fixing support. Mounting by Top and bottom, on rear of the enclosure. Made in stainless steel. Fixing by screwed from the outside location.
Additional Information
Environmental Disclosure:
ENVPEP2202003EN
Device Composition:
fixing screws || 4 lug
Fixing Mode:
screwed - from the outside
Material:
stainless steel
Sustainable Offer Status:
Green Premium product
Permanent Permissible Load:
100 kg horizontal position || 200 kg vertical position
Depth:
80 mm
Device Application:
multi-purpose
Accessory / Separate Part Category:
fixing accessory
Height:
40 mm
Circularity Profile:
N/A
Warranty:
18 months
Product Or Component Type:
wall fixing support
Rohs Exemption Information:
Yes
Width:
155 mm
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Range Compatibility:
Thalassa Thalassa PLM
Mercury Free:
Yes
Toxic Heavy Metal Free:
Yes
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Location:
top and bottom, on rear of the enclosure
Range:
Thalassa
