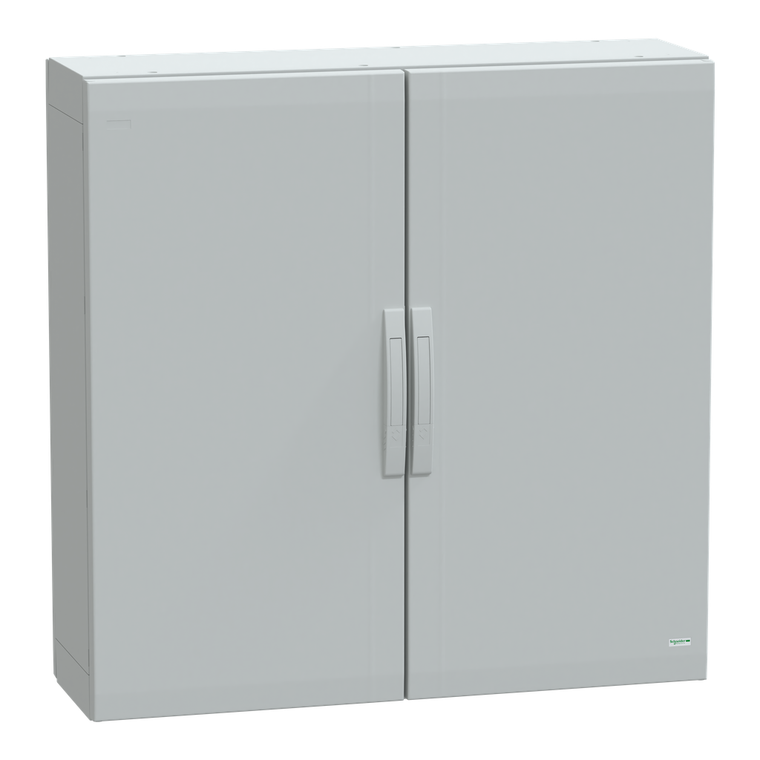

Schneider Electric NSYPLA10103G 7035 Fs Pol 1000X1000X320
Schneider Electric
$967.35
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Thalassa PLA floor standing polyester enclosure. 1000x 1000x 320 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 2 doors. Right and left 120° opening. Accessible front and rear. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.
- Sustainable Offer Status:
- Green Premium product
- Door Type:
- Solid front
- Rohs Exemption Information:
- Yes
- Electrical Insulation Class:
- class II
- Fire Resistance:
- 960 °C IEC 62208
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Material:
- polyester reinforced with fibreglass
- Device Short Name:
- PLA
- Ambient Air Temperature For Storage:
- -35-90 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Name:
- Thalassa PLA
- Accessibility For Operation:
- front || rear
- Enclosure Nominal Depth:
- 320 mm
- Number Of Doors:
- 2
- Device Application:
- multi-purpose
- Lock Type:
- 4 points lock, 5 mm double-bar
- Standards:
- IEC 62208 || UL 508 A
- Removable Parts:
- door by hinges || rear panel by fixing element
- Device Composition:
- 1 top part || 1 bottom part || 2 side part || 1 rear panel || 2 door
- Environmental Disclosure:
- ENVPEP110505EN
- Color:
- Gray RAL 7035)
- Product Or Component Type:
- suitable enclosure
- Enclosure Mounting:
- floor-standing
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ik Degree Of Protection:
- IK10 IEC 62262 plain door)
- Enclosure Nominal Width:
- 1000 mm
- Door Opening Side:
- right and left 120 °)
- Nema Degree Of Protection:
- NEMA 12 || NEMA 1 || NEMA 13 || NEMA 2
- Ip Degree Of Protection:
- IP65 IEC 60529 completely sealed)
- Body Type:
- sealed top and bottom part assembled with side parts
- Range:
- Thalassa
- Enclosure Nominal Height:
- 1000 mm
- Circularity Profile:
- N/A
- Product Certifications:
- Veritas || DNV Marine || UL/cUL listed
- Datasheet:
- View
