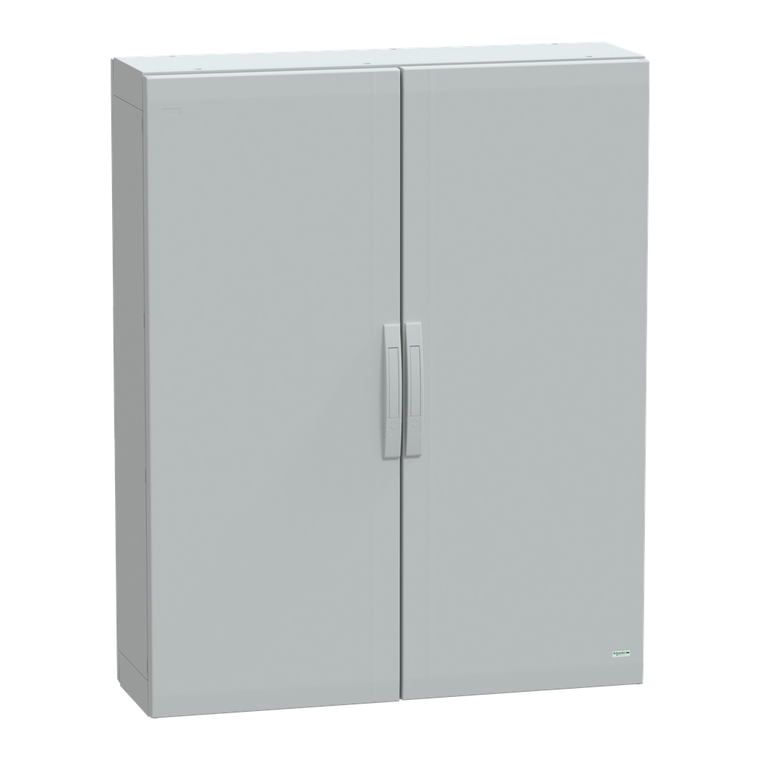

Schneider Electric NSYPLA12103G 7035 Fs Pol 1250X1000X320

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLA12103G 7035 Fs Pol 1250X1000X320

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA12103G

UPC:

3.60648E+12

MPN:

Condition:

New

Material:

polyester reinforced with fibreglass

Electrical Insulation Class:

class II

Number Of Doors:

2

Mercury Free:

Yes

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Range:

Thalassa

Rohs Exemption Information:

Yes

Device Application:

multi-purpose

Product Name:

Thalassa PLA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Accessibility For Operation:

rear || front

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Fire Resistance:

960 °C IEC 62208

Enclosure Nominal Depth:

320 mm

Enclosure Nominal Height:

1250 mm

Door Type:

Solid front

Enclosure Nominal Width:

1000 mm

Door Opening Side:

right and left 120 °)

Product Certifications:

Veritas || DNV Marine || UL/cUL listed

Product Or Component Type:

suitable enclosure

Enclosure Mounting:

floor-standing

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-35-90 °C

Nema Degree Of Protection:

NEMA 12 || NEMA 2 || NEMA 13 || NEMA 1

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Body Type:

sealed top and bottom part assembled with side parts

Environmental Disclosure:

ENVPEP110505EN

Standards:

UL 508 A || IEC 62208

Device Short Name:

PLA

Removable Parts:

door by hinges || rear panel by fixing element

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Lock Type:

4 points lock, 5 mm double-bar

Color:

Gray RAL 7035)

Catalog:

View

Datasheet:

View
