Schneider Electric

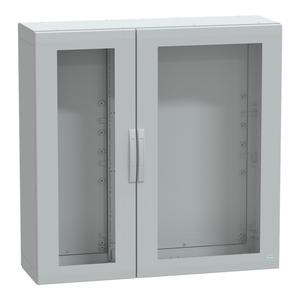

Schneider Electric NSYPLA12126TG 7035 Fs Pol 1250X1250X420 Glazed

SKU:

NSYPLA12126TG

UPC:

3.61E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-35-90 °C

Product Certifications:

DNV Marine || UL/cUL listed || Veritas

Color:

Gray RAL 7035)

Number Of Doors:

2

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Standards:

UL 508 A || IEC 62208

Enclosure Nominal Height:

1250 mm

Body Type:

sealed top and bottom part assembled with side parts

Door Opening Side:

right and left 120 °)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Mounting:

floor-standing

Removable Parts:

door by hinges || rear panel by fixing element

Device Application:

multi-purpose

Door Type:

transparent front

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Depth:

620 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Name:

Thalassa PLA

Material:

polyester reinforced with fibreglass

Lock Type:

4 points lock, 5 mm double-bar

Device Short Name:

PLA

Range:

Thalassa

Enclosure Nominal Width:

1250 mm

Environmental Disclosure:

ENVPEP110505EN

Product Or Component Type:

suitable enclosure

Circularity Profile:

N/A

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Fire Resistance:

960 °C IEC 62208

Mercury Free:

Yes

Nema Degree Of Protection:

NEMA 2 || NEMA 12 || NEMA 1 || NEMA 13

Accessibility For Operation:

front || rear

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Insulation Class:

class II

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Catalog:

View

Datasheet:

View
