Schneider Electric

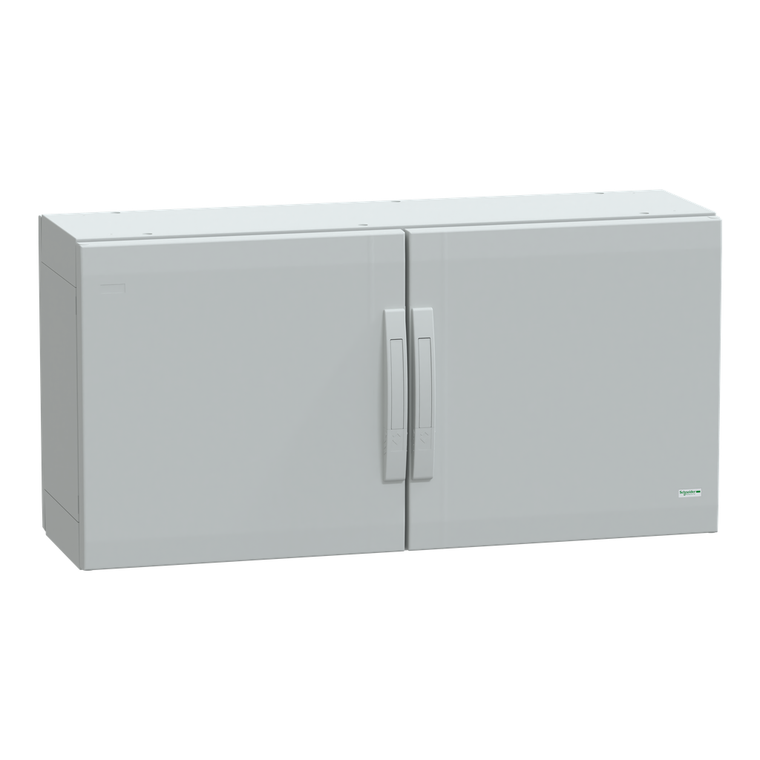

Schneider Electric NSYPLA5103G 7035 Fs Pol 500X1000X320

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLA5103G 7035 Fs Pol 500X1000X320

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA5103G

UPC:

3.60648E+12

MPN:

Condition:

New

Number Of Doors:

2

Enclosure Mounting:

floor-standing

Mercury Free:

Yes

Accessibility For Operation:

front || rear

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Name:

Thalassa PLA

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP110505EN

Nema Degree Of Protection:

NEMA 13 || NEMA 1 || NEMA 12 || NEMA 2

Removable Parts:

door by hinges || rear panel by fixing element

Standards:

IEC 62208 || UL 508 A

Enclosure Nominal Depth:

320 mm

Enclosure Nominal Width:

1000 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Fire Resistance:

960 °C IEC 62208

Electrical Insulation Class:

class II

Color:

Gray RAL 7035)

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Lock Type:

2 points lock, 5 mm double-bar

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Ambient Air Temperature For Storage:

-35-90 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range:

Thalassa

Door Type:

Solid front

Body Type:

sealed top and bottom part assembled with side parts

Circularity Profile:

N/A

Enclosure Nominal Height:

500 mm

Product Or Component Type:

suitable enclosure

Device Short Name:

PLA

Device Application:

multi-purpose

Product Certifications:

DNV Marine || Veritas || UL/cUL listed

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Rohs Exemption Information:

Yes

Door Opening Side:

right and left 120 °)

Material:

polyester reinforced with fibreglass

Catalog:

View

Datasheet:

View
