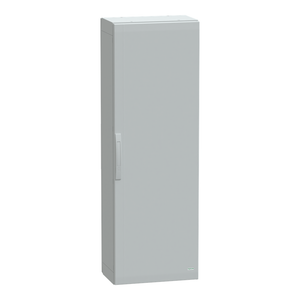

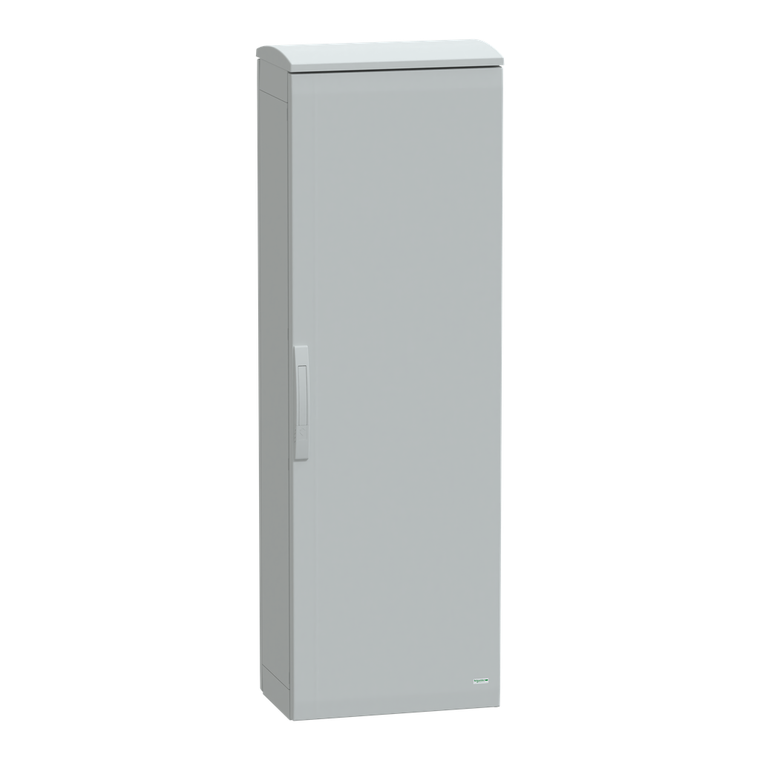

Schneider Electric NSYPLAT1553G 7035 Fs Pol Canopy 1500X500X320 Ip44

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLAT1553G 7035 Fs Pol Canopy 1500X500X320 Ip44

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLAT1553G

UPC:

3606480775352

MPN:

Condition:

New

Mercury Free:

Yes

Product Certifications:

Veritas

Product Name:

Thalassa PLA

Door Type:

Solid front

Product Or Component Type:

suitable enclosure

Range:

Thalassa

Standards:

IEC 62208

Fire Resistance:

960 °C IEC 62208

Body Type:

open top and sealed bottom part assembled with side parts

Ambient Air Temperature For Storage:

-35-90 °C

Material:

polyester reinforced with fibreglass

Electrical Insulation Class:

class II

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Device Short Name:

PLAT

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy

Number Of Doors:

1

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Accessibility For Operation:

rear || front || top

Lock Type:

4 points lock, handle with 5 mm double bar insert

Enclosure Mounting:

floor-standing

Color:

Gray RAL 7035)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Door Opening Side:

reversible 120 °)

Enclosure Nominal Height:

1500 mm

Enclosure Nominal Width:

500 mm

Device Application:

multi-purpose

Circularity Profile:

N/A

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

320 mm

Environmental Disclosure:

ENVPEP110505EN

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Catalog:

View

Datasheet:

View
