Schneider Electric

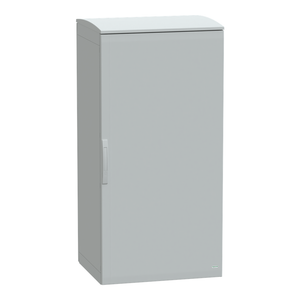

Schneider Electric NSYPLAZ1576G 7035 Fs Pol Plinth 1500X750X620

SKU:

NSYPLAZ1576G

UPC:

3.60649E+12

MPN:

Condition:

New

Product Or Component Type:

suitable enclosure

Accessibility For Operation:

rear || bottom || front

Enclosure Mounting:

floor-standing

Body Type:

sealed top and open bottom part assembled with side parts

Lock Type:

4 points lock, handle with 5 mm double bar insert

Enclosure Nominal Width:

750 mm

Environmental Disclosure:

ENVPEP110505EN

Product Certifications:

Veritas

Standards:

IEC 62208

Electrical Insulation Class:

class II

Range:

Thalassa

Mercury Free:

Yes

Enclosure Nominal Height:

1500 mm

Sustainable Offer Status:

Green Premium product

Door Type:

Solid front

Device Application:

multi-purpose

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 plinth

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Name:

Thalassa PLA

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Door Opening Side:

reversible 120 °)

Enclosure Nominal Depth:

620 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Material:

polyester reinforced with fibreglass

Color:

Gray RAL 7035)

Number Of Doors:

1

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Fire Resistance:

960 °C IEC 62208

Device Short Name:

PLAZ

Ambient Air Temperature For Storage:

-35-90 °C

Removable Parts:

door by hinges || rear panel by fixing element

Datasheet:

View
