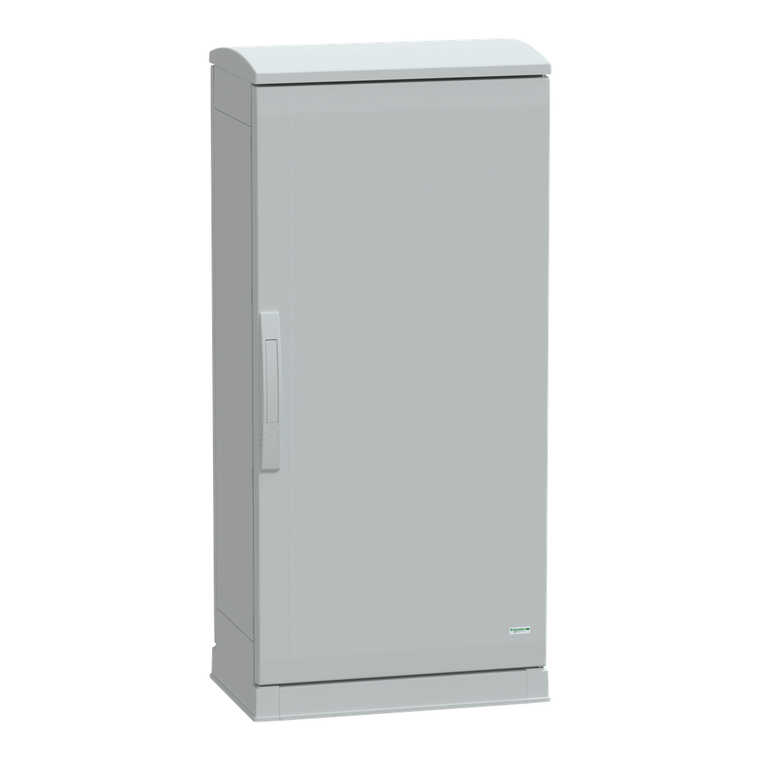

Schneider Electric NSYPLAZT1053G 7035 Pla Plin+Can1000X500X320

SKU:

NSYPLAZT1053G

UPC:

3606480775994

MPN:

Condition:

New

Enclosure Nominal Height:

1000 mm

Standards:

IEC 62208

Door Type:

Solid front

Fire Resistance:

960 °C IEC 62208

Device Application:

multi-purpose

Circularity Profile:

N/A

Material:

polyester reinforced with fibreglass

Rohs Exemption Information:

Yes

Enclosure Nominal Depth:

320 mm

Product Certifications:

Veritas

Enclosure Mounting:

floor-standing

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range:

Thalassa

Enclosure Nominal Width:

500 mm

Body Type:

open top and bottom part assembled with side parts

Product Name:

Thalassa PLA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP110505EN

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Lock Type:

4 points lock, handle with 5 mm double bar insert

Electrical Insulation Class:

class II

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-35-90 °C

Sustainable Offer Status:

Green Premium product

Door Opening Side:

reversible 180 °)

Ip Degree Of Protection:

IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)

Color:

Gray RAL 7035)

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy || 1 plinth

Accessibility For Operation:

rear || front || top || bottom

Device Short Name:

PLAZT

Product Or Component Type:

suitable enclosure

Number Of Doors:

1

Datasheet:

View
