Schneider Electric

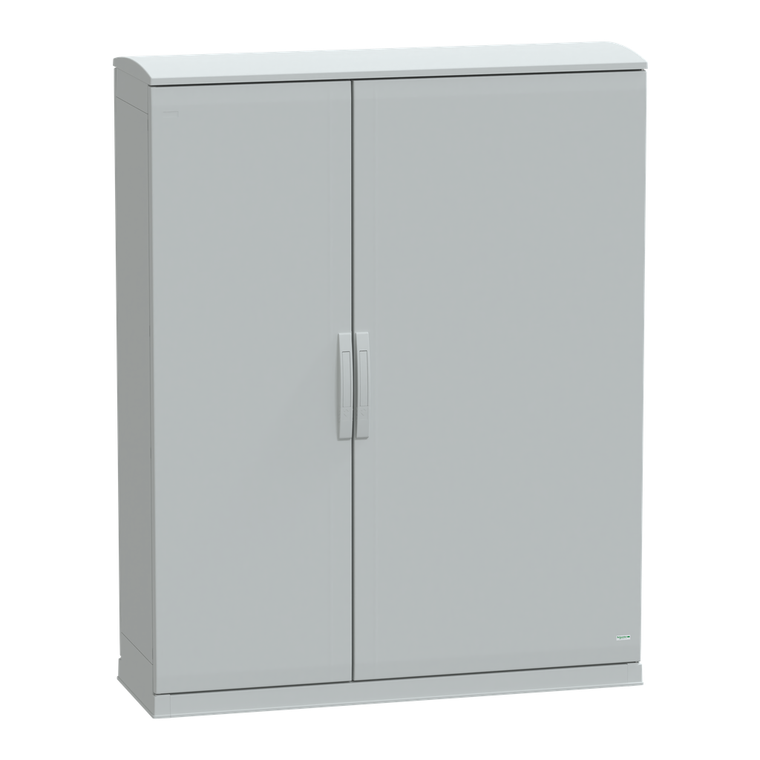

Schneider Electric NSYPLAZT15124G 7035 Pla Plin+Can1500X1250X420

SKU:

NSYPLAZT15124G

UPC:

3.60648E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Door Opening Side:

right and left 180 °)

Lock Type:

4 points lock, handle with 5 mm double bar insert

Product Name:

Thalassa PLA

Enclosure Nominal Width:

1250 mm

Range:

Thalassa

Body Type:

open top and bottom part assembled with side parts

Standards:

IEC 62208

Product Certifications:

Veritas

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy || 1 plinth

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Electrical Insulation Class:

class II

Enclosure Nominal Height:

1500 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Number Of Doors:

2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Ip Degree Of Protection:

IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)

Color:

Gray RAL 7035)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Short Name:

PLAZT

Product Or Component Type:

suitable enclosure

Material:

polyester reinforced with fibreglass

Ambient Air Temperature For Storage:

-35-90 °C

Fire Resistance:

960 °C IEC 62208

Mercury Free:

Yes

Enclosure Mounting:

floor-standing

Environmental Disclosure:

ENVPEP110505EN

Sustainable Offer Status:

Green Premium product

Device Application:

multi-purpose

Door Type:

Solid front

Enclosure Nominal Depth:

420 mm

Accessibility For Operation:

rear || top || bottom || front

Datasheet:

View
