Schneider Electric

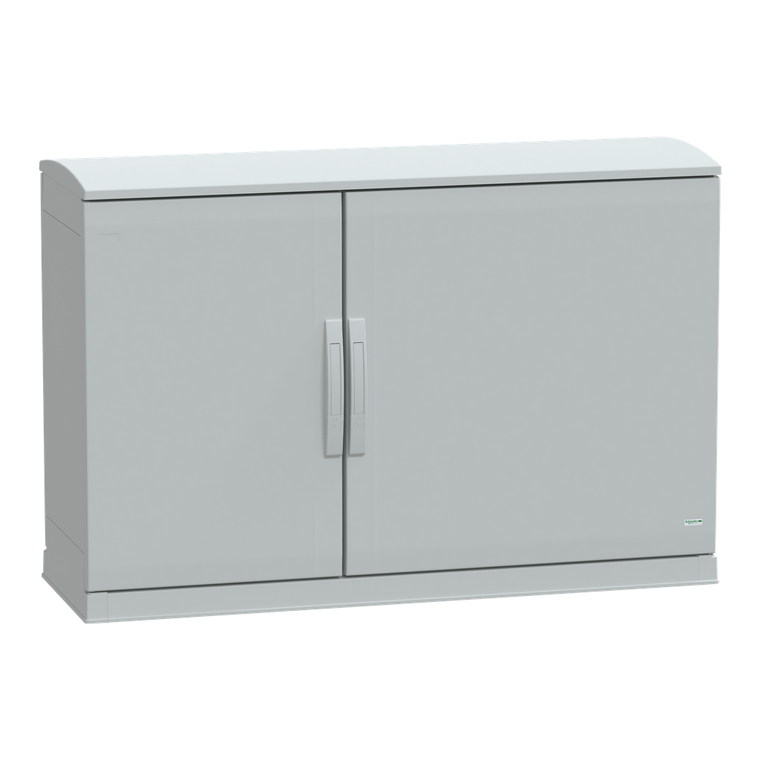

Schneider Electric NSYPLAZT7124G 7035 Pla Plin+Can750X1250X420

SKU:

NSYPLAZT7124G

UPC:

3.60648E+12

MPN:

Condition:

New

Enclosure Nominal Depth:

420 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Body Type:

open top and bottom part assembled with side parts

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Product Or Component Type:

suitable enclosure

Rohs Exemption Information:

Yes

Enclosure Nominal Height:

750 mm

Lock Type:

2 points handle lock, 5 mm double-bar

Door Opening Side:

right and left 180 °)

Circularity Profile:

N/A

Color:

Gray RAL 7035)

Device Short Name:

PLAZT

Enclosure Mounting:

floor-standing

Environmental Disclosure:

ENVPEP110505EN

Device Application:

multi-purpose

Electrical Insulation Class:

class II

Door Type:

Solid front

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy || 1 plinth

Accessibility For Operation:

bottom || front || rear || top

Ambient Air Temperature For Storage:

-35-90 °C

Fire Resistance:

960 °C IEC 62208

Ip Degree Of Protection:

IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

Veritas

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Doors:

2

Standards:

IEC 62208

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Range:

Thalassa

Material:

polyester reinforced with fibreglass

Enclosure Nominal Width:

1250 mm

Product Name:

Thalassa PLA

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Catalog:

View

Datasheet:

View
